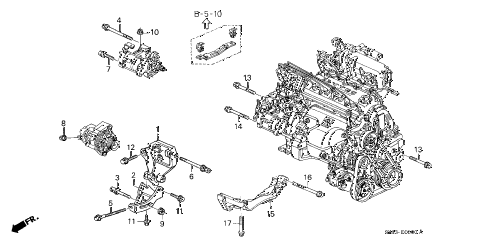

1998 CL PRE2.3 2 DOOR 5MT ALTERNATOR BRACKET (1) diagram
  • 001

    bracket, alternator

    • Part Number: 31112-PAA-A00

    '


    KA - US - 49 State Spec

    • $75.35

  • 002

    stay, alternator

    • Part Number: 31113-P0A-A00

    '


    KA - US - 49 State Spec

    • $195.55

  • 003

    bolt, tensioner

    • Part Number: 56995-PV0-000

    '


    KA - US - 49 State Spec

    • $9.32

  • 004

    bolt, flange (12x105)

    • Part Number: 95701-12105-08

    '


    KA - US - 49 State Spec

    • $2.73

  • 005

    bolt, adjuster special

    • Part Number: 90311-PT0-000

    '


    KA - US - 49 State Spec

    • $3.70

  • 006

    bolt, special (10x90)

    • Part Number: 90313-PT0-000

    '


    KA - US - 49 State Spec

    • $5.95

  • 007

    bolt-washer (10x32)

    • Part Number: 93401-10032-08

    '


    KA - US - 49 State Spec

    • $1.37

  • 008

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23

  • 009

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25

  • 010

    nut-washer (8mm)

    • Part Number: 94070-08080

    '


    KA - US - 49 State Spec

    • $0.43

  • 011

    bolt, flange (8x16)

    • Part Number: 95701-08016-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 012

    bolt, flange (10x35)

    • Part Number: 95701-10035-08

    '


    KA - US - 49 State Spec

    • $1.30

  • 013

    bolt, flange (12x70)

    • Part Number: 95701-12070-08

    '


    KA - US - 49 State Spec

    • $2.57

  • 014

    bolt, flange (12x85)

    • Part Number: 95701-12085-08

    '


    KA - US - 49 State Spec

    • $2.48

  • 015

    stiffener, engine

    • Part Number: 11950-PAA-A00

    '


    KA - US - 49 State Spec

    • $38.75

  • 016

    bolt, flange (10x50)

    • Part Number: 95701-10050-00

    '


    KA - US - 49 State Spec

    • $1.50

  • 017

    bolt, flange (12x105)

    • Part Number: 95701-12105-08

    '


    KA - US - 49 State Spec

    • $2.73
