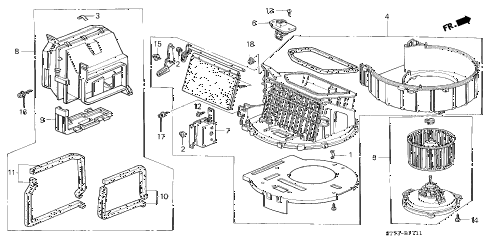

1998 INTEGRA RS 3 DOOR 5MT HEATER BLOWER (2) diagram
  • 002

    bush, link

    • Part Number: 79192-SR3-003

    '


    KA - US - 49 State Spec

    • $1.70

  • 003

    clip, case

    • Part Number: 79194-ST3-E01

    '


    KA - US - 49 State Spec

    • $5.03

  • 004

    blower sub-assy. (denso)

    • Part Number: 79305-SR3-A01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    motor assy., blower (denso)

    • Part Number: 79310-SR3-A01

    '


    KA - US - 49 State Spec

    • $128.03

  • 006

    resistor, blower

    • Part Number: 79330-SR3-A01

    '


    KA - US - 49 State Spec

    • $34.75

  • 007

    motor assy., fresh/recirculating

    • Part Number: 79350-SR3-A01

    '


    KA - US - 49 State Spec

    • $59.63

  • 008

    duct, heater

    • Part Number: 79810-ST3-G01

    '


    KA - US - 49 State Spec

    • $140.28

  • 009

    cover, duct

    • Part Number: 79813-ST3-E01

    '


    KA - US - 49 State Spec

    • $122.40

  • 010

    seal, duct (inlet)

    • Part Number: 80286-ST3-S01

    '


    KA - US - 49 State Spec

    • $11.53

  • 011

    seal, duct (outlet)

    • Part Number: 80287-ST3-S01

    '


    KA - US - 49 State Spec

    • $7.77

  • 012

    screw, tapping (5x12)

    • Part Number: 90121-SR3-003

    '


    KA - US - 49 State Spec

    • $1.95

  • 013

    screw, tapping (4x12)

    • Part Number: 93901-24320

    '


    KA - US - 49 State Spec

    • $0.55

  • 014

    screw, tapping (5x16)

    • Part Number: 90132-SR3-003

    '


    KA - US - 49 State Spec

    • $1.95

  • 015

    screw-washer (4x16)

    • Part Number: 90133-SR3-003

    '


    KA - US - 49 State Spec

    • $1.95

  • 016

    screw, tapping (6x20)

    • Part Number: 90155-SE0-003

    '


    KA - US - 49 State Spec

    • $2.73

  • 017

    bolt-washer (6x24)

    • Part Number: 90156-SH3-000

    '


    KA - US - 49 State Spec

    • $1.12

  • 018

    nut-washer (6mm) (paint cutting)

    • Part Number: 90321-SV4-003

    '


    KA - US - 49 State Spec

    • $2.78
