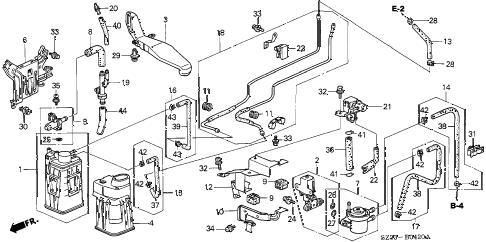

View large diagramHide diagramView diagramView printable catalog
  • 001

    canister assy.

    • Part Number: 17011-SZ3-A30

    '


    KA - US - 49 State Spec

    • $290.07

  • 002

    valve set, solenoid

    • Part Number: 17012-SV4-L30

    '


    KA - US - 49 State Spec

    • $133.60

  • 002

    valve set, solenoid

    • Part Number: 17012-SV4-L31

    '


    KA - US - 49 State Spec

    • $133.60

  • 003

    duct, canister

    • Part Number: 17303-SZ3-A30

    '


    KA - US - 49 State Spec

    • $36.58

  • 004

    cover, canister

    • Part Number: 17305-SZ3-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    valve, canister vent shut

    • Part Number: 17310-SV4-L32

    '


    KA - US - 49 State Spec

    • $164.08

  • 006

    bracket, canister

    • Part Number: 17358-SZ3-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    valve (two-way)

    • Part Number: 17371-SV4-L31

    '


    KA - US - 49 State Spec

    • $72.70

  • 008

    tube, canister

    • Part Number: 17372-SZ3-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    mount, bypass solenoid rubber

    • Part Number: 17381-SV4-L30

    '


    KA - US - 49 State Spec

    • $3.85

  • 010

    bracket, bypass solenoid

    • Part Number: 17382-SV4-L30

    '


    KA - US - 49 State Spec

    • $11.63

  • 011

    rubber, fuel pipe insulator

    • Part Number: 17701-SA7-930

    '


    KA - US - 49 State Spec

    • $2.87

  • 012

    stay assy., fuel vent valve

    • Part Number: 17719-SZ3-A30

    '


    KA - US - 49 State Spec

    • $13.15

  • 013

    hose, pressure regulator return (280mm)

    • Part Number: 17723-SL0-931

    '


    KA - US - 49 State Spec

    • $79.53

  • 014

    tube assy., vent

    • Part Number: 17724-SZ3-A30

    '


    KA - US - 49 State Spec

    • $9.15

  • 015

    tube assy., vent

    • Part Number: 17727-SZ3-A30

    '


    KA - US - 49 State Spec

    • $7.35

  • 016

    tube assy., purge

    • Part Number: 17728-SZ3-A30

    '


    KA - US - 49 State Spec

    • $10.87

  • 017

    tube assy. b, vent

    • Part Number: 17729-SZ3-A30

    '


    KA - US - 49 State Spec

    • $9.65

  • 018

    pipe assy., fuel vent joint

    • Part Number: 17730-SZ3-A30

    '


    KA - US - 49 State Spec

    • $44.83

  • 019

    joint, three way drain tube

    • Part Number: 17742-SZ3-A31

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    joint, drain tube

    • Part Number: 17745-SZ3-A31

    '


    KA - US - 49 State Spec

    • $2.73

  • 021

    sensor, vent pressure

    • Part Number: 37942-P5A-A01

    '


    KA - US - 49 State Spec

    • $298.40

  • 022

    cover, vent pressure sensor

    • Part Number: 37943-P0H-L01

    '


    KA - US - 49 State Spec

    • $4.67

  • 023

    clip, sensor pipe

    • Part Number: 53729-SK7-J51

    '


    KA - US - 49 State Spec

    • $7.33

  • 024

    screw-washer (5x16)

    • Part Number: 90890-SV4-000

    '


    KA - US - 49 State Spec

    • $1.80

  • 025

    o-ring (11.0x2.4)

    • Part Number: 91391-SV4-000

    '


    KA - US - 49 State Spec

    • $4.82

  • 026

    o-ring,no.1

    • Part Number: 91392-S02-000

    '


    KA - US - 49 State Spec

    • $7.85

  • 027

    o-ring (no.2)

    • Part Number: 91393-S02-000

    '


    KA - US - 49 State Spec

    • $4.82

  • 028

    clamp, fuel hose (15.5mm)

    • Part Number: 91406-SL0-931

    '


    KA - US - 49 State Spec

    • $6.75

  • 029

    clip a, bumper

    • Part Number: 91503-SP0-003

    '


    KA - US - 49 State Spec

    • $3.72

  • 030

    pin, clip (8mm)

    • Part Number: 91507-SH3-003

    '


    KA - US - 49 State Spec

    • $2.97

  • 031

    clip, fuel vent hose (black)

    • Part Number: 91593-SP0-A31

    '


    KA - US - 49 State Spec

    • $4.33

  • 032

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 033

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 034

    screw-washer (5x8)

    • Part Number: 93893-05008-08

    '


    KA - US - 49 State Spec

    • $0.80

  • 035

    screw-washer (5x10)

    • Part Number: 93893-05010-08

    '


    KA - US - 49 State Spec

    • $0.80

  • 036

    bulk hose, fuel (5.5x8000)

    • Part Number: 95001-55008-60M

    '


    KA - US - 49 State Spec

    • $54.30

  • 039

    bulk hose, fuel (7.5x8000)

    • Part Number: 95001-75008-60M

    '


    KA - US - 49 State Spec

    • $67.50

  • 040

    bulk hose, fuel (8x1000)

    • Part Number: 95001-80001-60M

    '


    KA - US - 49 State Spec

    • $15.45

  • 041

    clip, tube (b10)

    • Part Number: 95002-02100

    '


    KA - US - 49 State Spec

    • $1.02

  • 042

    clamp, tube (d10)

    • Part Number: 95002-41000-04

    '


    KA - US - 49 State Spec

    • $1.47

  • 043

    clamp, tube (d12)

    • Part Number: 95002-41200-04

    '


    KA - US - 49 State Spec

    • $1.47

  • 044

    bulk hose, vinyl (12x16x3000)

    • Part Number: 95003-40003-60M

    '


    KA - US - 49 State Spec

    Contact your dealer
