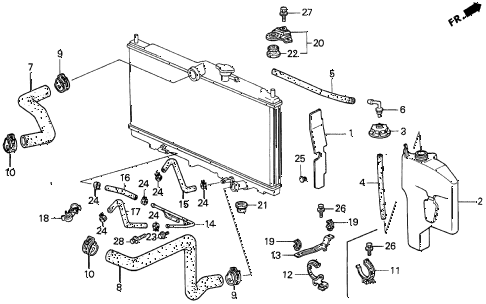

View large diagramHide diagramView diagramView printable catalog
  • 001

    seal, radiator

    • Part Number: 19025-P6W-A00

    '


    KA - US - 49 State Spec

    • $14.23

  • 002

    tank, reserve

    • Part Number: 19101-P0A-000

    '


    KA - US - 49 State Spec

    • $16.22

  • 003

    cap, reserve tank

    • Part Number: 19102-PM5-A00

    '


    KA - US - 49 State Spec

    • $1.67

  • 004

    hose, reserve tank

    • Part Number: 19103-P0A-000

    '


    KA - US - 49 State Spec

    • $4.33

  • 005

    hose, overflow

    • Part Number: 19104-P6W-A00

    '


    KA - US - 49 State Spec

    • $8.68

  • 006

    joint, reserve tank

    • Part Number: 19106-PM3-000

    '


    KA - US - 49 State Spec

    • $2.55

  • 007

    hose, water (upper)

    • Part Number: 19501-P6W-A01

    '


    KA - US - 49 State Spec

    • $17.50

  • 008

    hose, water (lower)

    • Part Number: 19502-P6W-A50

    '


    KA - US - 49 State Spec

    • $20.40

  • 009

    clip, hose (36.5mm) (chuo spring)

    • Part Number: 19511-PH7-003

    '


    KA - US - 49 State Spec

    • $6.38

  • 011

    clamp, hose (lower)

    • Part Number: 19519-P0A-000

    '


    KA - US - 49 State Spec

    • $63.90

  • 020

    bracket, radiator mounting

    • Part Number: 74170-SL9-000

    '


    KA - US - 49 State Spec

    • $16.52

  • 021

    cushion, radiator mounting (lower)

    • Part Number: 74172-SV5-A70

    '


    KA - US - 49 State Spec

    • $13.58

  • 022

    cushion, radiator mounting (upper)

    • Part Number: 74173-SJ4-000

    '


    KA - US - 49 State Spec

    • $3.42

  • 025

    clip, radiator seal

    • Part Number: 91564-PEA-000

    '


    KA - US - 49 State Spec

    • $2.67

  • 026

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 027

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

Back to Top
seal, radiatortank, reservecap, reserve tankhose, reserve tankhose, overflowjoint, reserve tankhose, water (upper)hose, water (lower)clip, hose (36.5mm) (chuo spring)clip, hose (36.5mm) (chuo spring)clamp, hose (lower)bracket, radiator mountingcushion, radiator mounting (lower)cushion, radiator mounting (upper)clip, radiator sealbolt, flange (6x12)bolt, flange (6x12)bolt-washer (6x16)
