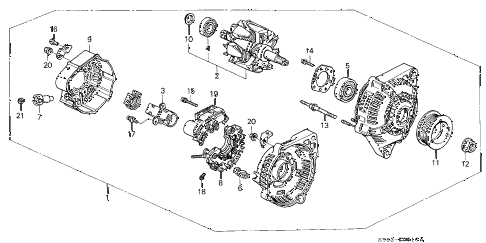

ALTERNATOR (DENSO) (1) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: alternator (rmd) core id 9761219-999 101211-9990 Part Number: 06311-PAA-505RM Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $230.68

Ref #: 001	Honda Part: alternator assy. (cju99) (denso) Part Number: 31100-PAA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $429.98

Ref #: 002	Honda Part: rotor assy. Part Number: 31101-PAA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $233.65

Ref #: 003	Honda Part: holder assy., brush Part Number: 31105-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $31.73

Ref #: 004	Honda Part: bearing, rr. generator Part Number: 31111-PT0-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $25.97

Ref #: 005	Honda Part: bearing, fr. generator Part Number: 31114-PT0-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $25.97

Ref #: 006	Honda Part: bush, insulation Part Number: 31118-PT0-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.70

Ref #: 007	Honda Part: bush, insulation Part Number: 31119-PT0-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $5.57

Ref #: 008	Honda Part: rectifier assy. Part Number: 31127-PT2-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $250.70

Ref #: 009	Honda Part: cover, rr. end Part Number: 31135-P3G-J01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $16.67

Ref #: 010	Honda Part: cover, bearing Part Number: 31138-PD1-004 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $5.68

Ref #: 011	Honda Part: pulley Part Number: 31141-P1E-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $78.98

Ref #: 012	Honda Part: nut, pulley lock Part Number: 31142-PD1-004 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.47

Ref #: 013	Honda Part: bolt, stud (6x68) Part Number: 31145-PD1-004 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.73

Ref #: 014	Honda Part: screw Part Number: 31146-PT0-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.45

Ref #: 015	Honda Part: screw-washer Part Number: 31147-PT0-003 Standard Qty.: 003 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.90

Ref #: 016	Honda Part: screw Part Number: 31147-P13-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.50

Ref #: 017	Honda Part: screw, wave washer Part Number: 31148-PT0-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.90

Ref #: 018	Honda Part: screw, wave washer Part Number: 31148-P13-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.50

Ref #: 019	Honda Part: regulator assy. Part Number: 31150-PEA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $205.15

Ref #: 020	Honda Part: nut-washer (5mm) Part Number: 90231-PD1-014 Standard Qty.: 007 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.37

Ref #: 021	Honda Part: nut, hex. (6mm) Part Number: 90232-PT0-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.17

Ref #: 001	Honda Part: alternator (rmd) core id 9761219-999 101211-9990 Part Number: 06311-PAA-505RM Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$230.68

Ref #: 001	Honda Part: alternator assy. (cju99) (denso) Part Number: 31100-PAA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$429.98

Ref #: 002	Honda Part: rotor assy. Part Number: 31101-PAA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$233.65

Ref #: 003	Honda Part: holder assy., brush Part Number: 31105-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$31.73

Ref #: 004	Honda Part: bearing, rr. generator Part Number: 31111-PT0-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$25.97

Ref #: 005	Honda Part: bearing, fr. generator Part Number: 31114-PT0-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$25.97

Ref #: 006	Honda Part: bush, insulation Part Number: 31118-PT0-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.70

Ref #: 007	Honda Part: bush, insulation Part Number: 31119-PT0-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$5.57

Ref #: 008	Honda Part: rectifier assy. Part Number: 31127-PT2-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$250.70

Ref #: 009	Honda Part: cover, rr. end Part Number: 31135-P3G-J01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$16.67

Ref #: 010	Honda Part: cover, bearing Part Number: 31138-PD1-004 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$5.68

Ref #: 011	Honda Part: pulley Part Number: 31141-P1E-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$78.98

Ref #: 012	Honda Part: nut, pulley lock Part Number: 31142-PD1-004 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.47

Ref #: 013	Honda Part: bolt, stud (6x68) Part Number: 31145-PD1-004 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.73

Ref #: 014	Honda Part: screw Part Number: 31146-PT0-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.45

Ref #: 015	Honda Part: screw-washer Part Number: 31147-PT0-003 Standard Qty.: 003 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.90

Ref #: 016	Honda Part: screw Part Number: 31147-P13-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.50

Ref #: 017	Honda Part: screw, wave washer Part Number: 31148-PT0-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.90

Ref #: 018	Honda Part: screw, wave washer Part Number: 31148-P13-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.50

Ref #: 019	Honda Part: regulator assy. Part Number: 31150-PEA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$205.15

Ref #: 020	Honda Part: nut-washer (5mm) Part Number: 90231-PD1-014 Standard Qty.: 007 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.37

Ref #: 021	Honda Part: nut, hex. (6mm) Part Number: 90232-PT0-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.17
