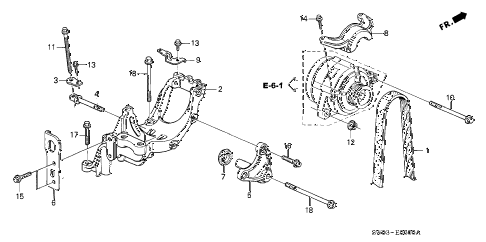

ALTERNATOR BRACKET - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: belt, alternator Part Number: 31110-PR7-A05 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $51.30

Ref #: 002	Honda Part: bracket, alternator Part Number: 31112-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $335.60

Ref #: 003	Honda Part: plate, alternator adjuster Part Number: 31113-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $15.93

Ref #: 004	Honda Part: bolt, alternator tensioner Part Number: 31114-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.55

Ref #: 005	Honda Part: bracket b, alternator Part Number: 31116-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $190.43

Ref #: 006	Honda Part: hanger, engine Part Number: 31117-PR7-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $22.93

Ref #: 007	Honda Part: grommet, acg bracket Part Number: 31120-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.07

Ref #: 008	Honda Part: cover, belt Part Number: 31125-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $25.30

Ref #: 009	Honda Part: stay, crank cylinder sensor connector Part Number: 37845-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.48

Ref #: 010	Honda Part: bolt, flange (10x90) Part Number: 95801-10090-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 011	Honda Part: bolt, adjusting (8x80) Part Number: 90043-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.65

Ref #: 012	Honda Part: nut, flange (10mm) Part Number: 94050-10080 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.05

Ref #: 013	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.00

Ref #: 014	Honda Part: bolt, flange (6x18) Part Number: 95701-06018-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.88

Ref #: 015	Honda Part: bolt, flange (8x20) Part Number: 95701-08020-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.88

Ref #: 016	Honda Part: bolt, flange (8x25) Part Number: 95701-08025-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.43

Ref #: 017	Honda Part: bolt, flange (8x38) Part Number: 95701-08038-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.28

Ref #: 018	Honda Part: bolt, flange (10x100) Part Number: 95701-10100-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 001	Honda Part: belt, alternator Part Number: 31110-PR7-A05 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$51.30

Ref #: 002	Honda Part: bracket, alternator Part Number: 31112-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$335.60

Ref #: 003	Honda Part: plate, alternator adjuster Part Number: 31113-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$15.93

Ref #: 004	Honda Part: bolt, alternator tensioner Part Number: 31114-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.55

Ref #: 005	Honda Part: bracket b, alternator Part Number: 31116-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$190.43

Ref #: 006	Honda Part: hanger, engine Part Number: 31117-PR7-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$22.93

Ref #: 007	Honda Part: grommet, acg bracket Part Number: 31120-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.07

Ref #: 008	Honda Part: cover, belt Part Number: 31125-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$25.30

Ref #: 009	Honda Part: stay, crank cylinder sensor connector Part Number: 37845-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.48

Ref #: 010	Honda Part: bolt, flange (10x90) Part Number: 95801-10090-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40

Ref #: 011	Honda Part: bolt, adjusting (8x80) Part Number: 90043-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.65

Ref #: 012	Honda Part: nut, flange (10mm) Part Number: 94050-10080 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.05

Ref #: 013	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.00

Ref #: 014	Honda Part: bolt, flange (6x18) Part Number: 95701-06018-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.88

Ref #: 015	Honda Part: bolt, flange (8x20) Part Number: 95701-08020-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.88

Ref #: 016	Honda Part: bolt, flange (8x25) Part Number: 95701-08025-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.43

Ref #: 017	Honda Part: bolt, flange (8x38) Part Number: 95701-08038-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.28

Ref #: 018	Honda Part: bolt, flange (10x100) Part Number: 95701-10100-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40
