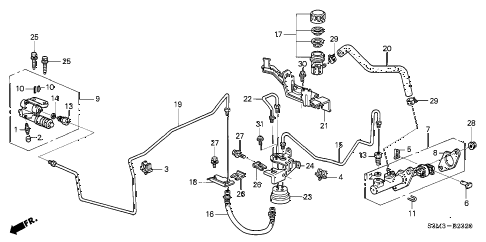

2003 CL SPORT 2 DOOR 6MT CLUTCH MASTER CYLINDER diagram
  • 001

    screw, bleeder

    • Part Number: 43352-567-000

    '


    KA - US - 49 State Spec

    • $5.90

  • 002

    cap, bleeder screw

    • Part Number: 43353-SD5-003

    '


    KA - US - 49 State Spec

    • $3.28

  • 003

    clip d

    • Part Number: 46392-SL0-003

    '


    KA - US - 49 State Spec

    • $5.22

  • 004

    clip a

    • Part Number: 46394-S04-003

    '


    KA - US - 49 State Spec

    • $0.78

  • 005

    pin, lock (8mm)

    • Part Number: 46911-S70-003

    '


    KA - US - 49 State Spec

    • $2.48

  • 006

    pin, clutch pedal

    • Part Number: 46912-S84-A00

    '


    KA - US - 49 State Spec

    • $3.22

  • 007

    master cylinder assy., clutch

    • Part Number: 46922-S3M-A01

    '


    KA - US - 49 State Spec

    • $86.43

  • 008

    seal, master cylinder

    • Part Number: 46928-S3M-A01

    '


    KA - US - 49 State Spec

    • $1.95

  • 009

    cylinder assy., slave

    • Part Number: 46930-S3M-A01

    '


    KA - US - 49 State Spec

    • $95.00

  • 010

    pin, spring

    • Part Number: 46931-S5A-003

    '


    KA - US - 49 State Spec

    • $1.02

  • 011

    pin, snap

    • Part Number: 46942-S5A-003

    '


    KA - US - 49 State Spec

    • $3.35

  • 012

    seal, ring

    • Part Number: 46943-S5A-003

    '


    KA - US - 49 State Spec

    • $3.47

  • 013

    connector, clutch master cylinder

    • Part Number: 46941-S5A-003

    '


    KA - US - 49 State Spec

    • $10.45

  • 013

    connector

    • Part Number: 46944-S5A-J01

    '


    KA - US - 49 State Spec

    • $3.13

  • 014

    seal, ring

    • Part Number: 46949-S5A-003

    '


    KA - US - 49 State Spec

    • $1.92

  • 015

    pipe a, clutch

    • Part Number: 46960-S3M-A01

    '


    KA - US - 49 State Spec

    • $7.03

  • 016

    hose, clutch

    • Part Number: 46961-S3M-A02

    '


    KA - US - 49 State Spec

    • $32.78

  • 017

    tank assy., clutch fluid

    • Part Number: 46965-S5A-013

    '


    KA - US - 49 State Spec

    • $24.02

  • 018

    bracket b, clutch pipe

    • Part Number: 46968-S3M-A01

    '


    KA - US - 49 State Spec

    • $22.97

  • 019

    pipe b, clutch

    • Part Number: 46970-S3M-A01

    '


    KA - US - 49 State Spec

    • $10.38

  • 020

    tube, clutch fluid

    • Part Number: 46971-S3M-A01

    '


    KA - US - 49 State Spec

    • $10.57

  • 021

    stay, purge control solenoid &tank holder

    • Part Number: 46975-S3M-A00

    '


    KA - US - 49 State Spec

    • $27.88

  • 022

    pipe c, clutch

    • Part Number: 46980-S3M-A01

    '


    KA - US - 49 State Spec

    • $9.22

  • 023

    damper, clutch

    • Part Number: 46985-SW3-003

    '


    KA - US - 49 State Spec

    • $67.75

  • 024

    bracket, clutch damper

    • Part Number: 46995-S3M-A02

    '


    KA - US - 49 State Spec

    • $27.32

  • 025

    bolt-washer (8x40)

    • Part Number: 90106-S84-A40

    '


    KA - US - 49 State Spec

    • $1.20

  • 026

    clip, brake hose

    • Part Number: 90651-538-000

    '


    KA - US - 49 State Spec

    • $4.58

  • 027

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 028

    nut-washer (8mm)

    • Part Number: 94070-08080

    '


    KA - US - 49 State Spec

    • $0.43

  • 029

    clamp, tube (d12)

    • Part Number: 46972-S6F-E01

    '


    KA - US - 49 State Spec

    • $2.97

  • 030

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 031

    bolt, flange (6x12)

    • Part Number: 99FS1-06127

    '


    KA - US - 49 State Spec

    • $0.58
