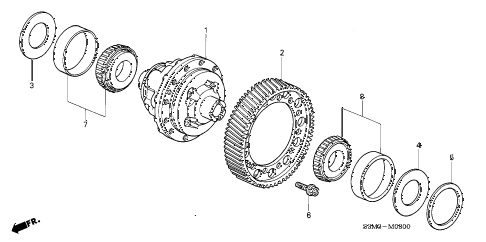

2003 CL SPORT 2 DOOR 6MT DIFFERENTIAL diagram
Back to Top
differential assy., helical limited slipgear, final drivenspacer (46x80x1)spacer (46x81x1)shim a (81mm) (2.05)shim b (81mm) (2.08)shim c (81mm) (2.11)shim d (81mm) (2.14)shim e (81mm) (2.17)shim f (81mm) (2.20)shim g (81mm) (2.23)shim h (81mm) (2.26)shim j (81mm) (2.29)shim k (81mm) (2.32)shim l (81mm) (2.35)shim m (81mm) (2.38)shim n (81mm) (2.41)shim p (81mm) (2.44)shim q (81mm) (2.47)shim r (81mm) (2.50)shim s (81mm) (2.53)shim t (81mm) (2.56)shim u (81mm) (2.59)shim v (81mm) (2.62)shim w (81mm) (2.65)shim x (81mm) (2.68)shim y (81mm) (2.71)shim z (81mm) (2.74)shim aa (81mm) (2.77)shim ab (81mm) (2.80)shim ac (81mm) (2.83)shim ad (81mm) (2.86)shim ae (81mm) (2.89)shim af (81mm) (2.92)shim ag (81mm) (2.95)shim ah (81mm) (2.98)shim aj (81mm) (3.01)shim ak (81mm) (3.04)shim al (81mm) (3.07)shim am (81mm) (3.10)shim an (81mm) (3.13)shim ap (81mm) (3.16)bolt, special (11mm)bearing, taper (45x80x21)bearing, taper (45x81x18)
