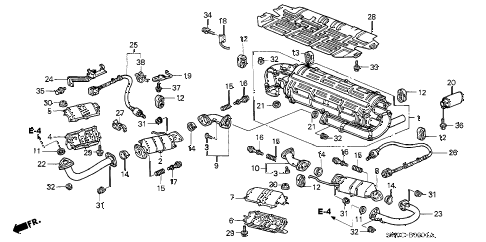

2003 NSX-T 2 DOOR 4AT EXHAUST PIPE (AT) diagram
  • 001

    muffler set, ex.

    • Part Number: 18030-SL0-J01

    '


    KA - US - 49 State Spec

    • $1,247.97

  • 002

    converter, fr.

    • Part Number: 18160-PR7-A50

    '


    KA - US - 49 State Spec

    • $1,704.88

  • 003

    bolt, converter

    • Part Number: 18176-P08-003

    '


    KA - US - 49 State Spec

    • $12.88

  • 004

    cover, fr. converter (lower)

    • Part Number: 18181-PR7-A50

    '


    KA - US - 49 State Spec

    • $137.98

  • 005

    cover, fr. converter (upper)

    • Part Number: 18182-PR7-A50

    '


    KA - US - 49 State Spec

    • $137.98

  • 006

    cover, rr. converter (lower)

    • Part Number: 18183-PR7-A50

    '


    KA - US - 49 State Spec

    • $137.98

  • 007

    cover, rr. converter (upper)

    • Part Number: 18184-PR7-000

    '


    KA - US - 49 State Spec

    • $137.98

  • 008

    converter, rr.

    • Part Number: 18190-PR7-A50

    '


    KA - US - 49 State Spec

    • $1,773.67

  • 009

    joint, pipe (fr)

    • Part Number: 18202-SL0-A02

    '


    KA - US - 49 State Spec

    • $221.23

  • 010

    joint, pipe (rr)

    • Part Number: 18202-SL0-A12

    '


    KA - US - 49 State Spec

    • $221.23

  • 011

    gasket, ex. pipe (nippon leakless)

    • Part Number: 18212-SA5-004

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    rubber, ex. mounting

    • Part Number: 18215-SL0-A00

    '


    KA - US - 49 State Spec

    • $12.80

  • 013

    rubber, ex. mounting

    • Part Number: 18215-SL0-A10

    '


    KA - US - 49 State Spec

    • $12.80

  • 014

    gasket, ex. flexible (50.8mm-64mm)

    • Part Number: 18229-SH3-X30

    '


    KA - US - 49 State Spec

    • $24.07

  • 015

    spring, flexible joint

    • Part Number: 18230-SA0-930

    '


    KA - US - 49 State Spec

    • $5.32

  • 016

    bolt b, flexible joint

    • Part Number: 18231-SR3-A22

    '


    KA - US - 49 State Spec

    • $11.92

  • 017

    bolt a, flexible joint

    • Part Number: 18231-SR3-J01

    '


    KA - US - 49 State Spec

    • $11.93

  • 018

    bracket, rr. ex. mounting

    • Part Number: 18282-SL0-A30

    '


    KA - US - 49 State Spec

    • $44.93

  • 019

    bracket, fr. ex. mounting

    • Part Number: 18282-SL0-J71

    '


    KA - US - 49 State Spec

    • $22.82

  • 020

    finisher, ex. pipe

    • Part Number: 18310-SL0-A52

    '


    KA - US - 49 State Spec

    • $259.12

  • 021

    gasket, pre chamber (52.5mm-53.5mm)

    • Part Number: 18393-SH3-S00

    '


    KA - US - 49 State Spec

    • $10.52

  • 022

    pipe a, fr. ex.

    • Part Number: 18510-SL0-A51

    '


    KA - US - 49 State Spec

    • $680.58

  • 023

    pipe a, rr. ex.

    • Part Number: 18520-SL0-J71

    '


    KA - US - 49 State Spec

    • $479.23

  • 024

    stay, oxygen sensor wire

    • Part Number: 36536-PR7-000

    '


    KA - US - 49 State Spec

    • $22.67

  • 025

    sensor, fr. secondary oxygen

    • Part Number: 36541-PR7-A51

    '


    KA - US - 49 State Spec

    • $384.73

  • 026

    sensor, rr. secondary oxygen

    • Part Number: 36542-PR7-A51

    '


    KA - US - 49 State Spec

    • $350.38

  • 027

    clip, oxygen sensor

    • Part Number: 36543-PR7-003

    '


    KA - US - 49 State Spec

    • $4.38

  • 028

    baffle, rr. floor heat

    • Part Number: 74650-SL0-010

    '


    KA - US - 49 State Spec

    • $143.37

  • 029

    bolt, flange (6x12) (iwata bolt)

    • Part Number: 90023-PR7-A01

    '


    KA - US - 49 State Spec

    • $5.73

  • 030

    nut, flange (6mm)

    • Part Number: 90115-SL5-A00

    '


    KA - US - 49 State Spec

    • $3.17

  • 031

    nut, self-lock (8mm) (clinch)

    • Part Number: 90115-659-003

    '


    KA - US - 49 State Spec

    • $0.42

  • 032

    nut, self-lock (10mm)

    • Part Number: 90212-SA5-003

    '


    KA - US - 49 State Spec

    • $0.58

  • 033

    bolt-washer (6x14)

    • Part Number: 93404-06014-05

    '


    KA - US - 49 State Spec

    • $0.88

  • 034

    bolt-washer (10x25)

    • Part Number: 93406-10025-05

    '


    KA - US - 49 State Spec

    • $1.30

  • 035

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 036

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 037

    bolt, flange (8x20)

    • Part Number: 95701-08020-05

    '


    KA - US - 49 State Spec

    • $1.02

  • 038

    clip, wire harness

    • Part Number: 91506-PM3-003

    '


    KA - US - 49 State Spec

    • $4.67
