WINDSHIELD WASHER
View large diagramHide diagramView diagramView printable catalogTranslate

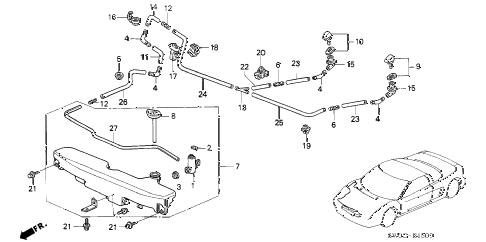

2003 NSX-T 2 DOOR 4AT WINDSHIELD WASHER diagram

  • 001

    motor, washer (mitsuba)

    Part Number: 38512-SB0-J01

    ''


    KA - US - 49 State Spec

    • $35.93

  • 002

    gasket (t-type) (denso)

    Part Number: 76807-SE4-A02

    ''


    KA - US - 49 State Spec

    • $7.43

  • 003

    bush, washer tank (mitsuba)

    Part Number: 38519-SB0-003

    ''


    KA - US - 49 State Spec

    • $5.13

  • 004

    joint l, washer tube (mitsuba)

    Part Number: 38562-SA0-003

    ''


    KA - US - 49 State Spec

    • $5.93

  • 005

    grommet, washer tube

    Part Number: 38564-658-921

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    valve, one-way (mitsuba)

    Part Number: 38571-SA5-621

    ''


    KA - US - 49 State Spec

    • $11.63

  • 007

    washer, windshield

    Part Number: 76801-SL0-A03

    ''


    KA - US - 49 State Spec

    • $251.13

  • 008

    cap, mouth

    Part Number: 76802-SL0-013

    ''


    KA - US - 49 State Spec

    • $9.88

  • 009

    nozzle assy., washer *b510p* (driver side)

    Part Number: 76810-SL0-A01YE
    (LONG BEACH BLUE PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    nozzle assy., washer *yr536p* (driver side)

    Part Number: 76810-SL0-A01YF
    (NEW IMOLA ORANGE PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    nozzle assy., washer *nh547* (driver side)

    Part Number: 76810-SL0-A01ZT
    (BERLINA BLACK)

    ''


    KA - US - 49 State Spec

    • $23.27

  • 009

    nozzle assy., washer *nh565* (driver side)

    Part Number: 76810-SL0-A01ZU
    (GRAND PRIX WHITE)

    ''


    KA - US - 49 State Spec

    • $23.27

  • 009

    nozzle assy., washer *r510* (driver side)

    Part Number: 76810-SL0-A01ZW
    (NEW FORMULA RED)

    ''


    KA - US - 49 State Spec

    • $22.58

  • 009

    nozzle assy., washer *y52p* (driver side)

    Part Number: 76810-SL0-A01ZX
    (SPA YELLOW PEARL)

    ''


    KA - US - 49 State Spec

    • $22.58

  • 010

    nozzle assy., washer *b510p* (driver side)

    Part Number: 76810-SL0-A01YE
    (LONG BEACH BLUE PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    nozzle assy., washer *nh547* (driver side)

    Part Number: 76810-SL0-A01ZT
    (BERLINA BLACK)

    ''


    KA - US - 49 State Spec

    • $23.27

  • 010

    nozzle assy., washer *nh565* (driver side)

    Part Number: 76810-SL0-A01ZU
    (GRAND PRIX WHITE)

    ''


    KA - US - 49 State Spec

    • $23.27

  • 010

    nozzle assy., washer *r510* (driver side)

    Part Number: 76810-SL0-A01ZW
    (NEW FORMULA RED)

    ''


    KA - US - 49 State Spec

    • $22.58

  • 010

    nozzle assy., washer *y52p* (driver side)

    Part Number: 76810-SL0-A01ZX
    (SPA YELLOW PEARL)

    ''


    KA - US - 49 State Spec

    • $22.58

  • 010

    nozzle *nh630m*

    Part Number: 76810-SL0-J01A3

    ''


    KA - US - 49 State Spec

    • $22.58

  • 011

    joint l, washer

    Part Number: 76828-SL0-003

    ''


    KA - US - 49 State Spec

    • $8.93

  • 012

    joint i, washer

    Part Number: 76829-SM1-004

    ''


    KA - US - 49 State Spec

    • $5.57

  • 013

    joint y, tube (mitsuba)

    Part Number: 76830-SL0-003

    ''


    KA - US - 49 State Spec

    • $8.93

  • 014

    tube a, rr. washer

    Part Number: 76851-SH5-003

    ''


    KA - US - 49 State Spec

    • $5.72

  • 015

    joint, washer tube

    Part Number: 76851-SL0-013

    ''


    KA - US - 49 State Spec

    • $12.17

  • 016

    clip, washer tube

    Part Number: 91507-SL0-003

    ''


    KA - US - 49 State Spec

    • $6.93

  • 017

    clip, washer tube

    Part Number: 91508-SL0-003

    ''


    KA - US - 49 State Spec

    • $6.93

  • 018

    clamp, washer tube

    Part Number: 91509-SL0-013

    ''


    KA - US - 49 State Spec

    • $4.60

  • 019

    clip, washer tube

    Part Number: 91523-SM4-003

    ''


    KA - US - 49 State Spec

    • $0.52

  • 020

    clip d, washer tube

    Part Number: 91566-SK7-003

    ''


    KA - US - 49 State Spec

    • $4.20

  • 021

    bolt-washer (6x16)

    Part Number: 93405-06016-04

    ''


    KA - US - 49 State Spec

    • $1.05

  • 022

    bulk hose, vinyl (4x7x8000)

    Part Number: 95003-07008-70M

    ''


    KA - US - 49 State Spec

    • $15.17
