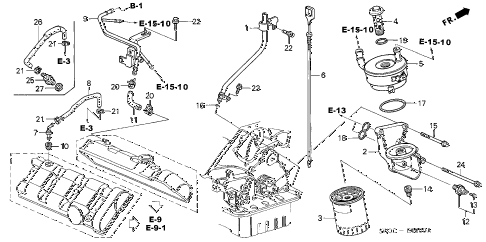

2003 NSX-T 2 DOOR 4AT OIL FILTER - BREATHER TUBE diagram
  • 001

    pipe, oil level

    • Part Number: 11110-PR7-A00

    '


    KA - US - 49 State Spec

    • $51.58

  • 002

    base, oil filter

    • Part Number: 15301-PR7-A00

    '


    KA - US - 49 State Spec

    • $122.30

  • 003

    filter, oil

    • Part Number: 15400-PL2-315

    '


    KA - US - 49 State Spec

    • $13.15

  • 004

    bolt assy., oil cooler center

    • Part Number: 15550-PH7-000

    '


    KA - US - 49 State Spec

    • $33.30

  • 005

    cooler, engine oil

    • Part Number: 15600-PR7-A01

    '


    KA - US - 49 State Spec

    • $462.17

  • 006

    dipstick, oil

    • Part Number: 15650-PR7-A01

    '


    KA - US - 49 State Spec

    • $17.85

  • 007

    valve assy., pcv

    • Part Number: 17130-PR7-A01

    '


    KA - US - 49 State Spec

    • $24.60

  • 008

    tube, pcv

    • Part Number: 17131-PR7-J00

    '


    KA - US - 49 State Spec

    • $21.77

  • 009

    pipe, breather

    • Part Number: 17137-PR7-J00

    '


    KA - US - 49 State Spec

    • $77.35

  • 010

    grommet, pcv valve

    • Part Number: 17139-PK1-000

    '


    KA - US - 49 State Spec

    • $3.02

  • 011

    tube, breather pipe

    • Part Number: 17153-PR7-J00

    '


    KA - US - 49 State Spec

    • $12.57

  • 012

    switch assy., oil pressure (denso)

    • Part Number: 37240-P13-013

    '


    KA - US - 49 State Spec

    • $36.66

  • 013

    bolt-washer (4x8) (denso)

    • Part Number: 90002-PA6-003

    '


    KA - US - 49 State Spec

    • $3.22

  • 014

    holder, oil filter

    • Part Number: 90015-PL2-000

    '


    KA - US - 49 State Spec

    • $6.10

  • 015

    bolt, flange (8x65)

    • Part Number: 90042-PR7-A00

    '


    KA - US - 49 State Spec

    • $3.70

  • 016

    o-ring (8.8x1.9)

    • Part Number: 91302-GE0-000

    '


    KA - US - 49 State Spec

    • $2.35

  • 016

    o-ring (8.8x1.9)

    • Part Number: 91308-PH9-000

    '


    KA - US - 49 State Spec

    • $2.35

  • 017

    o-ring (62.4x3.1)

    • Part Number: 91316-PE7-730

    '


    KA - US - 49 State Spec

    • $3.57

  • 018

    gasket, oil pump

    • Part Number: 91318-PY3-000

    '


    KA - US - 49 State Spec

    • $11.45

  • 019

    o-ring (29x2.4) (arai)

    • Part Number: 91327-PH7-004

    '


    KA - US - 49 State Spec

    • $5.25

  • 020

    clamp, tube (d17)

    • Part Number: 91405-PM5-004

    '


    KA - US - 49 State Spec

    • $5.37

  • 021

    clamp, tube (d13)

    • Part Number: 95002-41300-04

    '


    KA - US - 49 State Spec

    • $2.02

  • 022

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 023

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 024

    bolt, flange (8x120)

    • Part Number: 95701-08120-08

    '


    KA - US - 49 State Spec

    • $2.60
