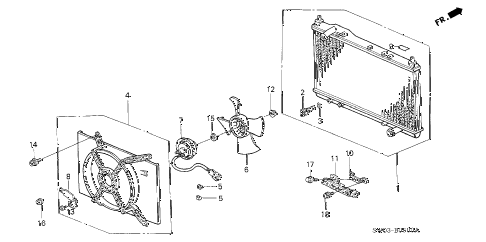

RADIATOR (SAK) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: radiator (sak) Part Number: 19010-PR7-A04 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $530.73

Ref #: 002	Honda Part: petcock, drain (sak) Part Number: 19011-PR7-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.07

Ref #: 003	Honda Part: gasket, drain (toyo) Part Number: 19012-PD2-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.28

Ref #: 004	Honda Part: shroud (sak) Part Number: 19015-PR7-A04 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $138.80

Ref #: 005	Honda Part: clip, harness (black) Part Number: 19019-PR7-A00 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.28

Ref #: 006	Honda Part: fan, cooling (mitsuba) Part Number: 19020-PR7-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $49.95

Ref #: 007	Honda Part: motor, cooling fan (mitsuba) Part Number: 19030-PR7-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $252.88

Ref #: 008	Honda Part: stay, connector clamp Part Number: 19033-PV0-015 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.95

Ref #: 009	Honda Part: mark b, radiator caution Part Number: 19044-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.43

Ref #: 010	Honda Part: stay, resistor Part Number: 19051-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $19.48

Ref #: 011	Honda Part: resistor assy. (denso) Part Number: 38613-PT2-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $61.97

Ref #: 012	Honda Part: nut, special (5mm) (mitsuba) Part Number: 90311-MB6-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 013	Honda Part: screw-washer (4x10) Part Number: 90041-PV0-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.10

Ref #: 014	Honda Part: bolt-washer (6x16) Part Number: 90042-PV0-005 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.47

Ref #: 015	Honda Part: washer, plain (7mm) (mitsuba) Part Number: 90403-PA0-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.22

Ref #: 016	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.23

Ref #: 017	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-05 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.87

Ref #: 018	Honda Part: bolt, flange (6x10) Part Number: 95301-06010-05 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.72

Ref #: 001	Honda Part: radiator (sak) Part Number: 19010-PR7-A04 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$530.73

Ref #: 002	Honda Part: petcock, drain (sak) Part Number: 19011-PR7-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.07

Ref #: 003	Honda Part: gasket, drain (toyo) Part Number: 19012-PD2-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.28

Ref #: 004	Honda Part: shroud (sak) Part Number: 19015-PR7-A04 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$138.80

Ref #: 005	Honda Part: clip, harness (black) Part Number: 19019-PR7-A00 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.28

Ref #: 006	Honda Part: fan, cooling (mitsuba) Part Number: 19020-PR7-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$49.95

Ref #: 007	Honda Part: motor, cooling fan (mitsuba) Part Number: 19030-PR7-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$252.88

Ref #: 008	Honda Part: stay, connector clamp Part Number: 19033-PV0-015 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.95

Ref #: 009	Honda Part: mark b, radiator caution Part Number: 19044-PR7-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.43

Ref #: 010	Honda Part: stay, resistor Part Number: 19051-PR7-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$19.48

Ref #: 011	Honda Part: resistor assy. (denso) Part Number: 38613-PT2-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$61.97

Ref #: 012	Honda Part: nut, special (5mm) (mitsuba) Part Number: 90311-MB6-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40

Ref #: 013	Honda Part: screw-washer (4x10) Part Number: 90041-PV0-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.10

Ref #: 014	Honda Part: bolt-washer (6x16) Part Number: 90042-PV0-005 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.47

Ref #: 015	Honda Part: washer, plain (7mm) (mitsuba) Part Number: 90403-PA0-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.22

Ref #: 016	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.23

Ref #: 017	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-05 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.87

Ref #: 018	Honda Part: bolt, flange (6x10) Part Number: 95301-06010-05 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.72
