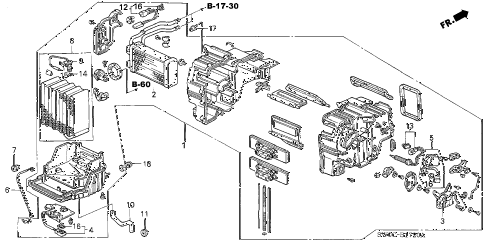

2004 NSX-T 2 DOOR 4AT HEATER UNIT diagram
Back to Top
heater assy.core, heatermotor assy., modemotor assy., air mixmotor assy., ventilationcable, water valve controlgrommet, water valve cableevaporator sub-assy.valve assy., expansionhose, draingrommet, drain hosesensor, water temperaturesensor, evaporatoro-ring (1/2")o-ring (3/8")clip, connector (red)clip, connector (red)clip, connector (red)bolt-washer (6x20)nut-washer (8mm)
