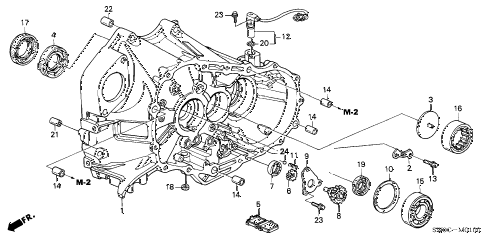

2004 NSX-T 2 DOOR 6MT MT CLUTCH CASE diagram
Back to Top
case, clutchplate, needle setplate c, oil guidering, oil guidemagnet, transmissionrotor, oil pump (inner) (41)rotor, oil pump (outer) (41)shaft, oil pumpplate, oil pumpwasher, spring (75mm)spring, relief valvepick-up assy., final (tec)bolt, special (6mm)pin, dowel (14x20)pin, dowel (14x20)pin, dowel (14x20)pin, dowel (14x20)bearing, ball (63/32)bearing, needle (44x72x23)oil seal (40x68x12.5)oil seal (17.5x27.5x7)oil seal (32x46x7)o-ring (16x2.1) (nok)pin, dowel (10x20)pin, dowel (14x20)bolt, flange (6x16)bolt, flange (6x16)ball, steel (#10) (5/16)
