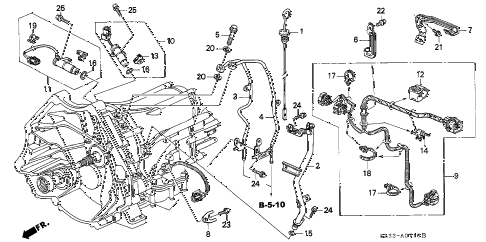

2004 RL 4 DOOR 4AT OIL LEVEL GAUGE - HARNESS diagram
Back to Top
dipstick, level (atf)pipe, dipstick (atf)pipe a (atf) (in)pipe b (atf) (out)bolt, jointclamp a, transmission harnessstay a, transmission harnessstopper, connectorsub-harness, transmissionpick-up assy., main (tec)pick-up assy., counter (hadsys)holder, corrugated (13mm) (dark green)washer, pick-upclip, wire harnesso-ring (17.8x1.9) (nok)o-ring (16x2.1) (nok)o-ring (16x2.1) (nok)clip, harness band (145.2mm) (natural)clip, harness band (145.2mm) (natural)band, wire harness (110mm) (brown)clip, hood wirewasher, drain plug (14mm)washer, drain plug (14mm)bolt, flange (6x10)bolt, flange (6x12)bolt, flange (6x14)bolt, flange (6x16)bolt, flange (6x16)bolt, flange (6x16)bolt, flange (6x18)bolt, flange (6x18)
