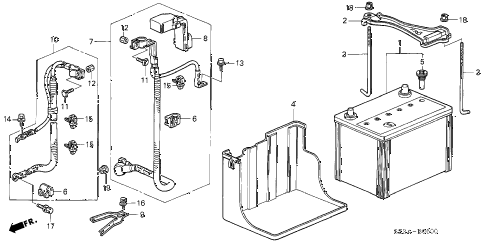

2004 RL 4 DOOR 4AT BATTERY diagram
Back to Top
battery assy. (80d26r-mf)plate, battery settingbolt, battery setting (220mm)bolt, battery setting (220mm)box assy., batteryplug, vent (mf) (furukawa)holder, corrugated (13mm) (dark green)holder, corrugated (13mm) (dark green)cable assy., startercover, battery terminalbracket, cable clampcable assy., groundbolt, battery terminalbolt, battery terminalnut, battery terminalnut, battery terminalbolt (6x15)bolt, ground (6x16)clip, harness band (151.5mm) (natural)clip, harness band (151.5mm) (natural)clip, harness band (151.5mm) (natural)bolt-washer (6x16)bolt-washer (10x25)nut, flange (6mm)nut, flange (6mm)nut-washer (8mm)
