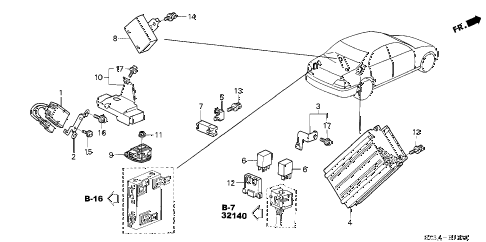

2004 RL 4 DOOR 4AT CONTROL UNIT (TRUNK) diagram
  • 001

    resistor assy., fuel pump

    • Part Number: 16717-P5A-A01

    '


    KA - US - 49 State Spec

    • $64.30

  • 002

    stay, fuel pump resistor

    • Part Number: 16718-P5A-A00

    '


    KA - US - 49 State Spec

    • $5.60

  • 003

    bracket, sunroof relay (iso)

    • Part Number: 32163-SZ3-000

    '


    KA - US - 49 State Spec

    • $8.68

  • 004

    amplifier assy.

    • Part Number: 39186-SZ3-A11

    '


    KA - US - 49 State Spec

    • $746.62

  • 005

    bracket, fuel cut relay

    • Part Number: 39406-SZ3-000

    '


    KA - US - 49 State Spec

    • $4.33

  • 006

    relay assy., power (5p) (micro iso) (mitsuba)

    • Part Number: 39794-S10-003

    '


    KA - US - 49 State Spec

    • $25.17

  • 007

    relay assy., power (4p) (denso)

    • Part Number: 39797-SH2-003

    '


    KA - US - 49 State Spec

    • $37.18

  • 008

    control unit, auto light

    • Part Number: 39850-SZ3-A01

    '


    KA - US - 49 State Spec

    • $285.03

  • 009

    sensor assy., yaw rate

    • Part Number: 39960-SZ3-023

    '


    KA - US - 49 State Spec

    • $1,183.50

  • 010

    bracket, sensor cover

    • Part Number: 39961-SZ3-000

    '


    KA - US - 49 State Spec

    • $42.12

  • 011

    nut, paint cutting (6mm)

    • Part Number: 90361-SV4-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 012

    cover, power relay

    • Part Number: 91751-S30-003

    '


    KA - US - 49 State Spec

    • $6.22

  • 013

    bolt-washer (6x16)

    • Part Number: 93401-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 014

    bolt-washer (6x12)

    • Part Number: 93405-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 015

    screw-washer (5x10)

    • Part Number: 93892-05010-08

    '


    KA - US - 49 State Spec

    • $0.68

  • 016

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 017

    bolt, flange (6x16)

    • Part Number: 95701-06016-00

    '


    KA - US - 49 State Spec

    • $0.88
