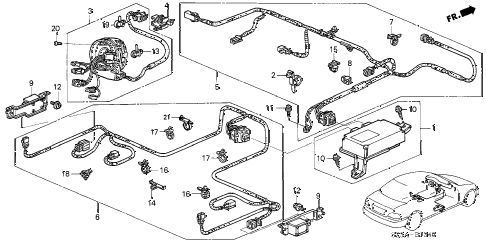

2004 RL 4 DOOR 4AT SRS UNIT diagram
Back to Top
srs unit kitband, harness offset (30) (122.5mm) (yellow)reel assy., cableholder, connector (2p)harness, srs mainwire harness, srs floorclip, srs harness (153mm) (blue)case, connectorsensor assy., side impactsensor assy., side impactbolt, torx (6x16)bolt, torx (6x16)bolt, torx ground (6x16)bolt, torx ground (6x20)bolt, torx ground (6x20)clip, wire harness (110mm) (7mm hole) (green)clip, offset (10) (50mm) (brown)clip, connector (natural)clip, harness band (96.9mm) (natural)clip, harness band (96.9mm) (natural)clip, harness band (145mm) (black)clip, harness band (145mm) (black)clip, connector (natural)clip, wire harness (130mm) (natural)screw, tapping (4x12) (po)
