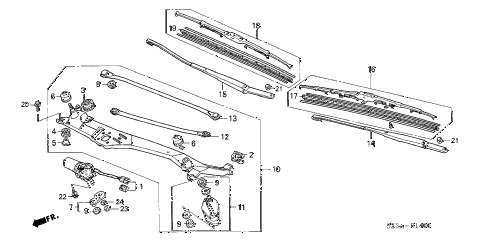

2004 RL 4 DOOR 4AT FRONT WINDSHIELD WIPER diagram
  • 001

    motor, fr. wiper (lh)

    • Part Number: 76505-SZ3-A01

    '


    KA - US - 49 State Spec

    • $423.88

  • 002

    rubber, mounting

    • Part Number: 76510-SM4-003

    '


    KA - US - 49 State Spec

    • $4.55

  • 003

    seal a

    • Part Number: 76515-SM4-013

    '


    KA - US - 49 State Spec

    • $7.92

  • 004

    rubber, mounting

    • Part Number: 76516-SM4-003

    '


    KA - US - 49 State Spec

    • $4.58

  • 005

    collar

    • Part Number: 76517-SM4-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 006

    cap, pivot

    • Part Number: 76518-SP0-003

    '


    KA - US - 49 State Spec

    • $9.60

  • 007

    link unit a

    • Part Number: 76520-SP0-003

    '


    KA - US - 49 State Spec

    • $19.60

  • 008

    dust seal

    • Part Number: 76524-SE0-013

    '


    KA - US - 49 State Spec

    • $4.78

  • 009

    dust seal

    • Part Number: 76524-SP0-A01

    '


    KA - US - 49 State Spec

    • $4.78

  • 010

    link, fr. wiper

    • Part Number: 76530-SP0-A02

    '


    KA - US - 49 State Spec

    • $375.42

  • 011

    link unit b

    • Part Number: 76539-SP0-A01

    '


    KA - US - 49 State Spec

    • $124.90

  • 012

    rod unit a

    • Part Number: 76540-SP0-A01

    '


    KA - US - 49 State Spec

    • $24.92

  • 013

    rod unit b

    • Part Number: 76550-SP0-A01

    '


    KA - US - 49 State Spec

    • $33.80

  • 014

    arm, windshield wiper (driver side)

    • Part Number: 76600-SP0-A02

    '


    KA - US - 49 State Spec

    • $95.32

  • 015

    arm, windshield wiper (passenger side)

    • Part Number: 76610-SZ3-A11

    '


    KA - US - 49 State Spec

    • $75.47

  • 016

    blade, windshield wiper (550mm) (driver side)

    • Part Number: 76620-SZ3-A11

    '


    KA - US - 49 State Spec

    • $16.13

  • 017

    rubber, blade (550mm)

    • Part Number: 76622-SZ3-003

    '


    KA - US - 49 State Spec

    • $5.63

  • 018

    blade wshld wiper

    • Part Number: 76630-SP0-305

    '


    KA - US - 49 State Spec

    • $14.03

  • 019

    rubber, blade (475mm)

    • Part Number: 76632-SZ3-003

    '


    KA - US - 49 State Spec

    • $5.63

  • 020

    bolt-washer (6x32)

    • Part Number: 90126-SR3-000

    '


    KA - US - 49 State Spec

    • $0.85

  • 021

    nut, hex. cap (10mm)

    • Part Number: 90201-SK7-000

    '


    KA - US - 49 State Spec

    • $7.70

  • 022

    bolt-washer (6x14)

    • Part Number: 93402-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 023

    nut, hex. (10mm)

    • Part Number: 94002-10080-0S

    '


    KA - US - 49 State Spec

    • $0.82

  • 024

    washer, spring (10mm)

    • Part Number: 94111-10800

    '


    KA - US - 49 State Spec

    • $0.63
