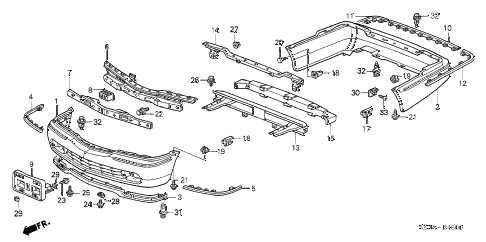

2004 RL 4 DOOR 4AT BUMPERS diagram
  • 001

    face, fr. bumper (dot)

    • Part Number: 04711-SZ3-A90ZZ

    '


    KA - US - 49 State Spec

    • $377.22

  • 002

    face, rr. bumper (dot)

    • Part Number: 04715-SZ3-A90ZZ

    '


    KA - US - 49 State Spec

    • $465.64

  • 003

    spoiler, fr. air

    • Part Number: 71111-SZ3-000

    '


    KA - US - 49 State Spec

    • $101.42

  • 004

    molding, r. fr. bumper

    • Part Number: 71120-SZ3-000

    '


    KA - US - 49 State Spec

    • $67.50

  • 005

    molding, l. fr. bumper

    • Part Number: 71125-SZ3-000

    '


    KA - US - 49 State Spec

    • $67.50

  • 006

    beam, fr. bumper

    • Part Number: 71130-SZ3-010

    '


    KA - US - 49 State Spec

    • $317.68

  • 007

    absorber, fr. bumper

    • Part Number: 71170-SZ3-010

    '


    KA - US - 49 State Spec

    • $80.33

  • 008

    gusset, fr. bumper beam center

    • Part Number: 71173-SR2-A00

    '


    KA - US - 49 State Spec

    • $22.47

  • 009

    base, fr. license plate

    • Part Number: 71180-SZ3-A00

    '


    KA - US - 49 State Spec

    • $23.52

  • 010

    molding, rr. bumper

    • Part Number: 71520-SZ3-000

    '


    KA - US - 49 State Spec

    • $117.08

  • 011

    molding, r. rr. bumper

    • Part Number: 71521-SZ3-000

    '


    KA - US - 49 State Spec

    • $75.83

  • 012

    molding, l. rr. bumper

    • Part Number: 71526-SZ3-000

    '


    KA - US - 49 State Spec

    • $75.83

  • 013

    beam, rr. bumper

    • Part Number: 71530-SZ3-A01

    '


    KA - US - 49 State Spec

    • $267.95

  • 014

    beam, rr. bumper (upper)

    • Part Number: 71541-SZ3-010ZZ

    '


    KA - US - 49 State Spec

    • $72.00

  • 015

    absorber, rr. bumper

    • Part Number: 71570-SZ3-A01

    '


    KA - US - 49 State Spec

    • $101.18

  • 016

    spacer, bumper side

    • Part Number: 71598-SL4-013

    '


    KA - US - 49 State Spec

    • $2.82

  • 017

    spacer, rr. bumper side

    • Part Number: 71598-SZ3-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 018

    grommet, bumper setting

    • Part Number: 90106-SW3-003

    '


    KA - US - 49 State Spec

    • $2.48

  • 019

    grommet, bumper end

    • Part Number: 90107-S0X-A01

    '


    KA - US - 49 State Spec

    • $0.95

  • 020

    clip, bumper setting

    • Part Number: 90108-SW3-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 021

    screw, tapping (5x20)

    • Part Number: 90109-SS0-000

    '


    KA - US - 49 State Spec

    • $2.73

  • 022

    bolt-washer (8x21)

    • Part Number: 90110-SE7-000

    '


    KA - US - 49 State Spec

    • $1.23

  • 023

    screw-washer (5x20)

    • Part Number: 90114-SZ3-000

    '


    KA - US - 49 State Spec

    • $3.92

  • 024

    bolt, bumper

    • Part Number: 90140-SZ3-000

    '


    KA - US - 49 State Spec

    • $2.57

  • 025

    bolt, bumper

    • Part Number: 90149-SA0-003

    '


    KA - US - 49 State Spec

    • $3.63

  • 026

    bolt, flange (12x28)

    • Part Number: 90165-S47-000

    '


    KA - US - 49 State Spec

    • $3.62

  • 027

    nut, paint cutting (6mm)

    • Part Number: 90301-SV7-000

    '


    KA - US - 49 State Spec

    • $3.03

  • 028

    nut, clip (6mm)

    • Part Number: 90306-SF1-000

    '


    KA - US - 49 State Spec

    • $3.17

  • 029

    nut, clip (6mm)

    • Part Number: 90675-SA5-003

    '


    KA - US - 49 State Spec

    • $3.43

  • 030

    clip, bumper side

    • Part Number: 91501-SW5-003

    '


    KA - US - 49 State Spec

    • $3.90

  • 031

    clip a, bumper

    • Part Number: 91503-SP0-003

    '


    KA - US - 49 State Spec

    • $3.72

  • 032

    clip a, bumper

    • Part Number: 91503-SZ3-003

    '


    KA - US - 49 State Spec

    • $3.58

  • 033

    screw, tapping (5x10)

    • Part Number: 93901-15180

    '


    KA - US - 49 State Spec

    • $0.55
