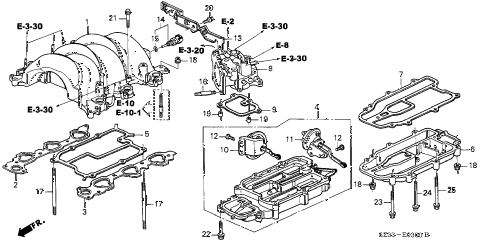

2004 RL 4 DOOR 4AT INTAKE MANIFOLD diagram
Back to Top
manifold, in.gasket, r. in. manifold (nippon leakless)gasket, l. in. manifold (nippon leakless)body assy., bypass valvegasket, bypass valve (ishino gasket)chamber, in.gasket, in. manifold chamber (nippon leakless)base, throttle bodygasket, throttle body base (nippon leakless)diaphragm assy., lowdiaphragm assy., highscrew, pan (5x14)screw, pan (5x14)stay b, engine wire harnesssensor assy., air temperatureo-ringbolt, stud (8x40)bolt, stud (8x90)bolt, stud (8x90)nut, flange (8mm)nut, flange (8mm)nut, flange (8mm)pin, dowel (10x16)pin, dowel (10x16)bolt, flange (6x12)bolt, flange (8x40)bolt, flange (8x45)bolt, flange (8x80)bolt, flange (8x90)bolt, flange (8x95)
