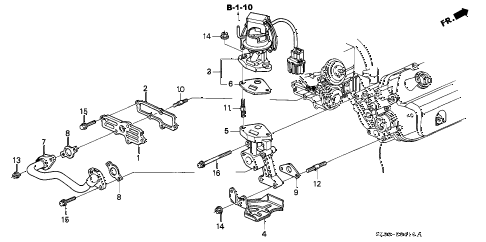

2004 RL 4 DOOR 4AT EGR VALVE diagram
  • 001

    cover, egr

    • Part Number: 17122-PY3-000

    '


    KA - US - 49 State Spec

    • $21.75

  • 002

    gasket, egr cover (nippon leakless)

    • Part Number: 17123-P5A-004

    '


    KA - US - 49 State Spec

    • $3.50

  • 003

    valve set, egr

    • Part Number: 18011-PY3-000

    '


    KA - US - 49 State Spec

    • $268.89

  • 004

    cover b, r. ex. manifold

    • Part Number: 18121-P5G-000

    '


    KA - US - 49 State Spec

    • $13.22

  • 005

    passage, egr

    • Part Number: 18711-PY3-000

    '


    KA - US - 49 State Spec

    • $74.50

  • 006

    gasket, egr valve (ishino gasket)

    • Part Number: 18715-PB2-000

    '


    KA - US - 49 State Spec

    • $7.03

  • 007

    pipe, egr

    • Part Number: 18717-P5A-000

    '


    KA - US - 49 State Spec

    • $85.42

  • 008

    gasket, egr pipe (ishino gasket)

    • Part Number: 18721-PR7-A01

    '


    KA - US - 49 State Spec

    • $11.38

  • 009

    gasket b, egr passage (ishino gasket)

    • Part Number: 18722-PY3-003

    '


    KA - US - 49 State Spec

    • $4.02

  • 010

    bolt, stud (6x28)

    • Part Number: 92900-06028-1B

    '


    KA - US - 49 State Spec

    • $1.07

  • 011

    bolt, stud (8x22)

    • Part Number: 92900-08022-0B

    '


    KA - US - 49 State Spec

    • $1.17

  • 012

    bolt, stud (8x35)

    • Part Number: 92900-08035-0B

    '


    KA - US - 49 State Spec

    • $1.33

  • 013

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23

  • 014

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25

  • 015

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec

    • $0.22

  • 016

    bolt, flange (8x55)

    • Part Number: 95701-08055-08

    '


    KA - US - 49 State Spec

    • $1.37
