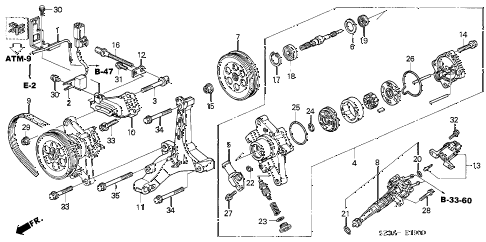

2004 RL 4 DOOR 4AT P.S. PUMP diagram
  • 001

    pipe e, install

    • Part Number: 17403-P5A-000

    '


    KA - US - 49 State Spec

    • $13.52

  • 002

    condenser (showa)

    • Part Number: 30505-PR7-A01

    '


    KA - US - 49 State Spec

    • $20.92

  • 003

    bolt, tensioner

    • Part Number: 31114-PL2-000

    '


    KA - US - 49 State Spec

    • $9.32

  • 004

    p/s pump (rmd)(american showa)

    • Part Number: 06561-P5A-506RM

    '


    KA - US - 49 State Spec

    • $428.25

  • 004

    pump sub-assy., power steering

    • Part Number: 56110-P5A-023

    '


    KA - US - 49 State Spec

    • $772.22

  • 005

    joint, in.

    • Part Number: 56123-P5A-003

    '


    KA - US - 49 State Spec

    • $29.47

  • 006

    spacer, pump seal

    • Part Number: 56167-P2A-003

    '


    KA - US - 49 State Spec

    • $3.65

  • 007

    pulley, power steering pump

    • Part Number: 56483-P5A-003

    '


    KA - US - 49 State Spec

    • $43.10

  • 008

    sensor assy., power steering

    • Part Number: 56500-P5G-000

    '


    KA - US - 49 State Spec

    • $291.32

  • 009

    belt, power steering pump (bando)

    • Part Number: 56992-P5G-003

    '


    KA - US - 49 State Spec

    • $30.78

  • 010

    bracket, power steering pump

    • Part Number: 56994-PY3-000

    '


    KA - US - 49 State Spec

    • $89.75

  • 011

    bracket, r. engine stopper

    • Part Number: 56995-P5A-000

    '


    KA - US - 49 State Spec

    • $208.63

  • 012

    stay, power steering pump adjuster

    • Part Number: 56998-PT0-000

    '


    KA - US - 49 State Spec

    • $6.23

  • 013

    sensor assy., speed (ns)

    • Part Number: 78410-SZ3-003

    '


    KA - US - 49 State Spec

    • $138.42

  • 014

    bolt, flange (8x28)

    • Part Number: 90105-S50-003

    '


    KA - US - 49 State Spec

    • $0.48

  • 015

    nut, power steering pulley

    • Part Number: 90305-PAA-A01

    '


    KA - US - 49 State Spec

    • $1.92

  • 016

    bolt, adjuster special

    • Part Number: 90311-PY3-000

    '


    KA - US - 49 State Spec

    • $5.12

  • 017

    circlip (inner) (40mm)

    • Part Number: 90693-P2A-003

    '


    KA - US - 49 State Spec

    • $4.47

  • 018

    bearing, radial ball (17x40x12)

    • Part Number: 91048-P2A-003

    '


    KA - US - 49 State Spec

    • $13.87

  • 019

    seal, power steering pump

    • Part Number: 91249-P5A-003

    '


    KA - US - 49 State Spec

    • $7.02

  • 020

    o-ring (14.8x1.9)

    • Part Number: 91304-PT0-000

    '


    KA - US - 49 State Spec

    • $2.35

  • 021

    o-ring (23.5x2)

    • Part Number: 91313-611-010

    '


    KA - US - 49 State Spec

    • $1.98

  • 022

    o-ring (13.0x1.9)

    • Part Number: 91345-RDA-A01

    '


    KA - US - 49 State Spec

    • $0.72

  • 023

    o-ring (16.7x1.8)

    • Part Number: 91347-PAA-A01

    '


    KA - US - 49 State Spec

    • $0.80

  • 024

    o-ring (15.2x2.4)

    • Part Number: 91347-P2A-003

    '


    KA - US - 49 State Spec

    • $0.55

  • 025

    o-ring (51.0x2.4)

    • Part Number: 91348-P2A-003

    '


    KA - US - 49 State Spec

    • $1.12

  • 026

    seal, power steering pump cover

    • Part Number: 91349-P2A-003

    '


    KA - US - 49 State Spec

    • $7.70

  • 027

    bolt, flange (6x20)

    • Part Number: 91350-P8C-A01

    '


    KA - US - 49 State Spec

    • $1.23

  • 028

    bolt-washer (6x25)

    • Part Number: 93403-06025-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 029

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25

  • 030

    bolt, flange (6x10)

    • Part Number: 95701-06010-08

    '


    KA - US - 49 State Spec

    • $0.87

  • 031

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 032

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 033

    bolt, flange (10x35)

    • Part Number: 95701-10035-08

    '


    KA - US - 49 State Spec

    • $1.30

  • 034

    bolt, flange (10x60)

    • Part Number: 95701-10060-08

    '


    KA - US - 49 State Spec

    • $1.50

  • 035

    bolt, flange (10x80)

    • Part Number: 95701-10080-08

    '


    KA - US - 49 State Spec

    • $1.80
