FRONT DOOR LINING
View large diagramHide diagramView diagramView printable catalogTranslate

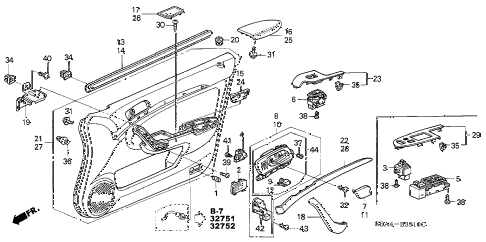

2004 TSX 4 DOOR 5AT FRONT DOOR LINING diagram

  • 001

    bulb (12v 3.8w 2cp)

    Part Number: 33301-S70-003

    ''


    KA - US - 49 State Spec

    • $2.11

  • 002

    lens

    Part Number: 34261-SDA-A01

    ''


    KA - US - 49 State Spec

    • $9.80

  • 003

    switch assy., remote control mirror

    Part Number: 35190-SEC-A01

    ''


    KA - US - 49 State Spec

    • $59.03

  • 004

    switch assy., auto door lock

    Part Number: 35380-S3V-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    switch assy.

    Part Number: 35750-SEC-305

    ''


    KA - US - 49 State Spec

    • $340.17

  • 006

    switch assy., rr. power window

    Part Number: 35770-SEC-A01

    ''


    KA - US - 49 State Spec

    • $83.84

  • 007

    cap, r. inside handle *nh167l*

    Part Number: 72121-SEA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $5.90

  • 008

    handle assy., r. inside *nh167l*

    Part Number: 72121-SEC-A02ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $66.07

  • 009

    snap, r. (natural)

    Part Number: 72134-S2X-003

    ''


    KA - US - 49 State Spec

    • $2.45

  • 010

    handle assy., l. fr. door inside *nh167l*

    Part Number: 72160-SEC-A01ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $66.07

  • 011

    cap, l. inside handle *nh167l*

    Part Number: 72161-SEA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $5.90

  • 012

    snap, l. (black)

    Part Number: 72174-S2X-003

    ''


    KA - US - 49 State Spec

    • $2.27

  • 013

    weatherstrip, r. fr. door (inner)

    Part Number: 72335-SEA-013

    ''


    KA - US - 49 State Spec

    • $27.08

  • 014

    weatherstrip, l. fr. door (inner)

    Part Number: 72375-SEA-013

    ''


    KA - US - 49 State Spec

    • $27.08

  • 015

    cover, r. pull pocket *nh167l*

    Part Number: 83501-SEA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $9.08

  • 016

    armrest assy., r. fr. door *nh167l* (lea)

    Part Number: 83502-SEA-J31ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $111.02

  • 016

    armrest assy., r. fr. door *nh528l* (lea)

    Part Number: 83502-SEA-J31ZE
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    • $111.02

  • 016

    armrest assy., r. fr. door *yr240l* (lea)

    Part Number: 83502-SEA-J31ZF
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    cap, r. fr. pull pocket *nh167l*

    Part Number: 83505-SEA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $4.63

  • 018

    panel, r. fr. door grip *nh167l*

    Part Number: 83506-SEC-A02ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $35.67

  • 018

    panel, r. fr. door grip *yr240l*

    Part Number: 83506-SEC-A02ZC
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    • $35.67

  • 018

    panel, r. fr. door grip *nh528l*

    Part Number: 83506-SEC-A02ZD
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    • $35.67

  • 019

    bracket, pull pocket

    Part Number: 83508-SDA-000ZZ

    ''


    KA - US - 49 State Spec

    • $7.50

  • 020

    cover, lock knob *nh167l*

    Part Number: 83508-SDA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $47.58

  • 021

    lining, r. fr. door (lower) *yr240l*

    Part Number: 83508-SEC-A02ZD
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    lining, r. fr. door (lower) *nh167l*

    Part Number: 83508-SEC-A11ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $513.33

  • 021

    lining, r. fr. door (lower) *nh528l*

    Part Number: 83508-SEC-A11ZC
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    • $513.33

  • 022

    panel, r. fr. door ornament *nh542l*

    Part Number: 83519-SEC-A01ZA
    (HIGH METAL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    panel, r. fr. door ornament *yr268l* (wood)

    Part Number: 83519-SEC-A11ZA
    (YELLOW WOOD PANEL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    base, r. fr. power window switch panel *nh515l*

    Part Number: 83546-SEA-003ZB
    (DARK M)

    ''


    KA - US - 49 State Spec

    • $45.30

  • 024

    cover, l. pull pocket *nh167l*

    Part Number: 83551-SEA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $9.08

  • 025

    armrest assy., l. fr. door *nh167l* (lea)

    Part Number: 83552-SEA-J31ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $111.02

  • 025

    armrest assy., l. fr. door *nh528l* (lea)

    Part Number: 83552-SEA-J31ZE
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    • $111.02

  • 025

    armrest assy., l. fr. door *yr240l* (lea)

    Part Number: 83552-SEA-J31ZF
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    • $111.02

  • 026

    cap, l. fr. pull pocket *nh167l*

    Part Number: 83555-SEA-003ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $4.63

  • 027

    lining, l. fr. door (lower) *yr240l*

    Part Number: 83558-SEC-A03ZD
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    • $513.33

  • 027

    lining, l. fr. door (lower) *nh167l*

    Part Number: 83558-SEC-A11ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $513.33

  • 027

    lining, l. fr. door (lower) *nh528l*

    Part Number: 83558-SEC-A11ZB
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    • $513.33

  • 028

    pnl, l. fr. *nh542l*

    Part Number: 83569-SEC-305ZA

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 028

    panel l,fr door o

    Part Number: 83569-SEC-306ZA

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 029

    base, l. fr. power window switch panel *nh515l*

    Part Number: 83595-SEA-003ZB
    (DARK M)

    ''


    KA - US - 49 State Spec

    • $45.30

  • 030

    screw, tapping (4x16)

    Part Number: 90101-S03-000

    ''


    KA - US - 49 State Spec

    • $1.95

  • 031

    screw, tapping (4x10) (po)

    Part Number: 90132-SS0-000

    ''


    KA - US - 49 State Spec

    • $2.13

  • 032

    screw, tapping (5x12)

    Part Number: 90141-SDA-000

    ''


    KA - US - 49 State Spec

    • $0.15

  • 034

    grommet, screw (5mm)

    Part Number: 90662-SB2-003

    ''


    KA - US - 49 State Spec

    • $0.55

  • 035

    clip, snap fitting (po)(natural)

    Part Number: 90666-SDA-A01

    ''


    KA - US - 49 State Spec

    • $0.53

  • 036

    clip, door lining (natural)

    Part Number: 91560-S84-A01

    ''


    KA - US - 49 State Spec

    • $2.08

  • 037

    screw-washer (3x8)

    Part Number: 93893-03008-18

    ''


    KA - US - 49 State Spec

    • $0.63

  • 038

    screw, tapping (3x10)

    Part Number: 93901-22220

    ''


    KA - US - 49 State Spec

    • $0.58

  • 039

    screw, tapping (5x20)

    Part Number: 93903-25420

    ''


    KA - US - 49 State Spec

    • $0.40

  • 040

    screw, tapping (5x16)

    Part Number: 93903-45320

    ''


    KA - US - 49 State Spec

    • $0.58

  • 041

    screw, tapping (3x12)

    Part Number: 93901-22320

    ''


    KA - US - 49 State Spec

    • $0.58
