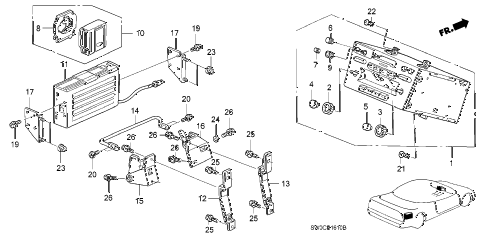

2005 NSX-T 2 DOOR 6MT AUTO RADIO diagram
  • 001

    tuner assy. (am/fm/cas) (alpine)

    • Part Number: 39100-SL0-A04

    '


    KA - US - 49 State Spec

    • $2,877.63

  • 002

    knob, volume (a)

    • Part Number: 39113-SL0-901

    '


    KA - US - 49 State Spec

    • $17.40

  • 003

    knob, volume (b)

    • Part Number: 39114-SL0-901

    '


    KA - US - 49 State Spec

    • $17.40

  • 004

    knob assy., volume

    • Part Number: 39115-SL0-901

    '


    KA - US - 49 State Spec

    • $17.40

  • 005

    knob assy., tuner

    • Part Number: 39116-SL0-921

    '


    KA - US - 49 State Spec

    • $17.40

  • 006

    knob, balance control

    • Part Number: 39117-SL0-003

    '


    KA - US - 49 State Spec

    • $10.43

  • 007

    knob, treble

    • Part Number: 39118-SL0-003

    '


    KA - US - 49 State Spec

    • $10.43

  • 008

    tray, magazine

    • Part Number: 39118-SZ3-003

    '


    KA - US - 49 State Spec

    • $18.57

  • 009

    knob, bass

    • Part Number: 39119-SL0-003

    '


    KA - US - 49 State Spec

    • $10.43

  • 010

    magazine assy., cd

    • Part Number: 39119-S3V-A01

    '


    KA - US - 49 State Spec

    • $71.15

  • 011

    cd changer unit

    • Part Number: 39180-SL0-003

    '


    KA - US - 49 State Spec

    • $3,484.40

  • 012

    stay, r. cd changer

    • Part Number: 39182-SL0-000

    '


    KA - US - 49 State Spec

    • $14.67

  • 013

    stay, l. cd changer

    • Part Number: 39181-SL0-000

    '


    KA - US - 49 State Spec

    • $20.58

  • 014

    bar, cd changer protection

    • Part Number: 39183-SL0-000

    '


    KA - US - 49 State Spec

    • $33.68

  • 015

    bracket assy., r. cd changer

    • Part Number: 39184-SL0-000

    '


    KA - US - 49 State Spec

    • $50.18

  • 016

    bracket assy., l. cd changer

    • Part Number: 39185-SL0-000

    '


    KA - US - 49 State Spec

    • $90.40

  • 017

    bracket, cd changer

    • Part Number: 39186-SL0-000

    '


    KA - US - 49 State Spec

    • $40.18

  • 019

    bolt-washer (4x8)

    • Part Number: 93401-04008-07

    '


    KA - US - 49 State Spec

    • $0.63

  • 020

    screw-washer (5x12)

    • Part Number: 93891-05012-07

    '


    KA - US - 49 State Spec

    • $0.68

  • 021

    screw-washer (5x12)

    • Part Number: 93892-05012-08

    '


    KA - US - 49 State Spec

    • $0.68

  • 022

    screw, tapping (4x16)

    • Part Number: 93903-44480

    '


    KA - US - 49 State Spec

    • $0.55

  • 023

    nut, flange (6mm)

    • Part Number: 94050-06070

    '


    KA - US - 49 State Spec

    • $0.83

  • 024

    washer, spring (6mm)

    • Part Number: 94111-06700

    '


    KA - US - 49 State Spec

    • $0.57

  • 025

    bolt, flange (6x16)

    • Part Number: 95701-06016-07

    '


    KA - US - 49 State Spec

    • $0.88

  • 026

    bolt, flange (6x20)

    • Part Number: 95701-06020-07

    '


    KA - US - 49 State Spec

    • $0.88
