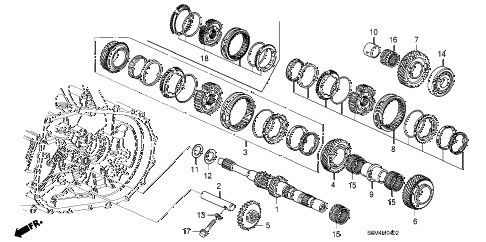

2005 RSX TYPE-S 3 DOOR 6MT MT MAINSHAFT (6MT) diagram
  • 001

    mainshaft

    • Part Number: 23210-PNS-020

    '


    KA - US - 49 State Spec

    • $275.28

  • 002

    shaft, reverse gear

    • Part Number: 23261-PPP-000

    '


    KA - US - 49 State Spec

    • $15.33

  • 003

    gear set,3rd

    • Part Number: 23444-PNS-326

    '


    KA - US - 49 State Spec

    • $336.20

  • 004

    gear, mainshaft fourth

    • Part Number: 23450-PNS-000

    '


    KA - US - 49 State Spec

    • $93.63

  • 005

    gear, reverse idle

    • Part Number: 23540-PPS-000

    '


    KA - US - 49 State Spec

    • $63.10

  • 006

    gear, mainshaft fifth

    • Part Number: 23580-PNS-010

    '


    KA - US - 49 State Spec

    • $106.65

  • 007

    gear, mainshaft sixth

    • Part Number: 23590-PNS-010

    '


    KA - US - 49 State Spec

    • $100.02

  • 009

    collar, distance (32x39x52)

    • Part Number: 23915-PPP-000

    '


    KA - US - 49 State Spec

    • $26.72

  • 010

    collar, distance (28x35x24)

    • Part Number: 23916-PNS-000

    '


    KA - US - 49 State Spec

    • $6.47

  • 011

    washer, spring (28mm)

    • Part Number: 23927-PG2-A00

    '


    KA - US - 49 State Spec

    • $5.47

  • 012

    washer (28mm)

    • Part Number: 23928-PS1-000

    '


    KA - US - 49 State Spec

    • $5.22

  • 013

    washer, drain plug (10mm)

    • Part Number: 90401-PG1-000

    '


    KA - US - 49 State Spec

    • $2.55

  • 014

    bearing, ball (28x72x18)

    • Part Number: 91002-RAS-003

    '


    KA - US - 49 State Spec

    • $39.23

  • 015

    bearing, needle (39x44x24)

    • Part Number: 91102-RZF-006

    '


    KA - US - 49 State Spec

    • $11.77

  • 016

    bearing, needle (35x40x24)

    • Part Number: 91103-PNS-003

    '


    KA - US - 49 State Spec

    • $15.17

  • 017

    bolt, flange (10x50)

    • Part Number: 95801-10050-08

    '


    KA - US - 49 State Spec

    • $1.50

  • 018

    sleeve set, synchronizer (5-6)

    • Part Number: 23626-PNS-315

    '


    KA - US - 49 State Spec

    • $354.57

Back to Top
mainshaftshaft, reverse geargear set,3rdgear, mainshaft fourthgear, reverse idlegear, mainshaft fifthgear, mainshaft sixthcollar, distance (32x39x52)collar, distance (28x35x24)washer, spring (28mm)washer (28mm)washer, drain plug (10mm)bearing, ball (28x72x18)bearing, needle (39x44x24)bearing, needle (39x44x24)bearing, needle (39x44x24)bearing, needle (35x40x24)bolt, flange (10x50)sleeve set, synchronizer (5-6)
