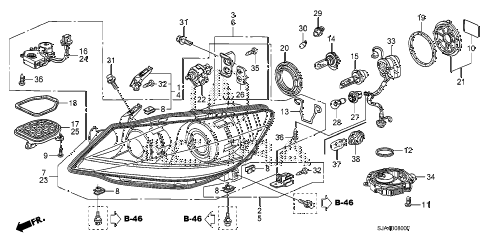

2006 RL 4 DOOR 5AT HEADLIGHT (1) diagram
Back to Top
leg kit a, r. headlight mountingleg kit b, r. headlight mountingleg kit c, r. headlight mountingleg kit a, l. headlight mountingleg kit b, l. headlight mountingleg kit c, l. headlight mountingheadlight unit, r.nut, specialnut, specialnut, specialnut, specialscrew, special tapping (4x14)label, cautionscrew, special tapping (6x14)seal, gasketholder, bulbbulb, headlight (hb3) (12v 60w) (sylvania)bulb, headlight (d2s) (hid) (stanley)box, r. gearcoverseal, gasket (2)seal, gasketcover, rubbercoveradjuster unit, headlightheadlight unit, l.box, l. gearcoverplate (2)socket (gray)bulb, fr. turn (12v 2cp) (amber)socket (t10)bulb (12v 5w 3cp) (stanley)bolt-washer (6x20)bolt-washer (6x20)igniter, hidcontrol unitcontrol unitscrew, special tapping (5x16)screw, special tapping (m4x12)screw, special tapping (m4x12)
