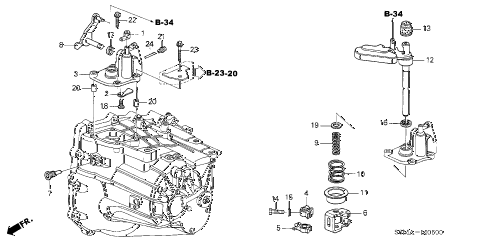

2006 RSX BASE 3 DOOR 5MT MT SHIFT ARM (5MT) diagram
  • 001

    cap, breather

    • Part Number: 21396-P20-000

    '


    KA - US - 49 State Spec

    • $4.20

  • 002

    plate, breather

    • Part Number: 21399-PPP-000

    '


    KA - US - 49 State Spec

    • $4.43

  • 003

    cover, shift arm

    • Part Number: 21520-PPP-000

    '


    KA - US - 49 State Spec

    • $43.35

  • 004

    arm, shift

    • Part Number: 24411-PPP-010

    '


    KA - US - 49 State Spec

    • $28.70

  • 005

    striker, reverse lock cam

    • Part Number: 24412-PPP-000

    '


    KA - US - 49 State Spec

    • $20.88

  • 006

    interlock

    • Part Number: 24430-PPP-010

    '


    KA - US - 49 State Spec

    • $15.33

  • 007

    bolt, interlock

    • Part Number: 24433-PH8-000

    '


    KA - US - 49 State Spec

    • $9.93

  • 008

    lever, select

    • Part Number: 24460-PPP-000

    '


    KA - US - 49 State Spec

    • $31.42

  • 009

    spring, first-second select

    • Part Number: 24464-PPP-000

    '


    KA - US - 49 State Spec

    • $2.48

  • 010

    spring, fifth-sixth select

    • Part Number: 24466-PPP-000

    '


    KA - US - 49 State Spec

    • $2.92

  • 011

    plate, select stopper

    • Part Number: 24467-PPP-000

    '


    KA - US - 49 State Spec

    • $4.43

  • 012

    lever comp,shift

    • Part Number: 24470-PPP-010

    '


    KA - US - 49 State Spec

    • $58.55

  • 013

    cover, shift lever

    • Part Number: 24479-PPP-000

    '


    KA - US - 49 State Spec

    • $4.73

  • 014

    bolt, hex. (8x24)

    • Part Number: 90029-611-010

    '


    KA - US - 49 State Spec

    • $5.12

  • 015

    washer, conical spring (8mm)

    • Part Number: 90412-679-000

    '


    KA - US - 49 State Spec

    • $2.92

  • 016

    dust seal (18x24x5)

    • Part Number: 91207-PPP-003

    '


    KA - US - 49 State Spec

    • $5.00

  • 017

    dust seal (14x20x4)

    • Part Number: 91208-PPP-003

    '


    KA - US - 49 State Spec

    • $4.17

  • 018

    screw, flat (6x14)

    • Part Number: 93600-06014-0H

    '


    KA - US - 49 State Spec

    • $0.60

  • 019

    washer, plain (14mm)

    • Part Number: 94102-14800

    '


    KA - US - 49 State Spec

    • $0.60

  • 020

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec

    • $1.17

  • 021

    bolt, flange (6x8)

    • Part Number: 95701-06008-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 022

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec

    • $0.22

  • 023

    bolt, flange (6x30)

    • Part Number: 95701-06030-00

    '


    KA - US - 49 State Spec

    • $1.03

  • 024

    roller (4x23.8)

    • Part Number: 96220-40238

    '


    KA - US - 49 State Spec

    • $0.48
