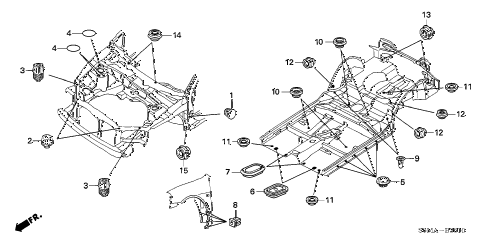

2006 RSX TYPE-S 3 DOOR 6MT GROMMET (FR.) diagram
Back to Top
grommet, wire harnesscushion a, hoodstopper, trunk lidstopper, trunk lidseal, inside panel (15mm)seal, inside panel (15mm)grommet, drain hole (25mm)cap, weld hole (51x77)plug, hole (27x56)grommet, screw (5mm)boot, floorplug, floor hole (25mm)plug, floor hole (25mm)cap, floor hole (49mm)cap, floor hole (49mm)cap, floor hole (49mm)plug, blind (7mm)plug, blind (7mm)plug, blind (7mm)plug, blind (35mm)plug, blind (11mm)plug, blind (25mm)
