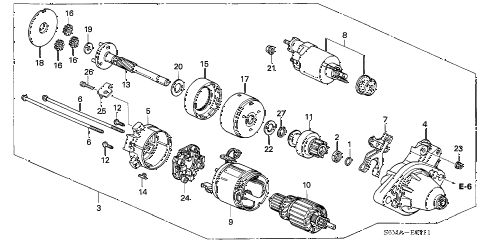

2006 RSX TYPE-S 3 DOOR 6MT STARTER MOTOR (DENSO) (TYPE-S) diagram
Back to Top
ring, snap (denso)collar, clutch stopstarter, core id (9742809-328)(428000-0010) (rmd)starter motor assy. (dsdhl) (denso)housing, drive sideend frame, commutatorbolt, through (denso)bolt, through (denso)lever, pinion driveswitch assy., magnetyokearmatureclutch, overrunningscrew, pan (4mm)screw, pan (4mm)shaft, drivecovergear assy. (inner)gear, planetarygear, planetarygear, planetaryshock absorberplate, sealwasher awasher bnut, hex. (8mm)washer cnut, hex.plate, brush holderstay assy., engine harnessbolt-washercirclip, outer (15mm)
