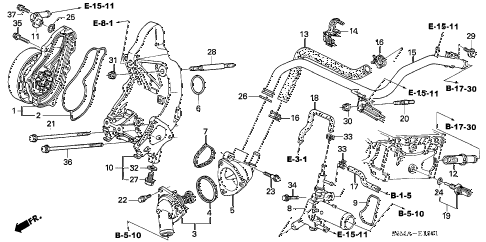

2006 RSX TYPE-S 3 DOOR 6MT WATER PUMP (TYPE-S) diagram
Back to Top
water pumpgasket, water pumpthermostat assy. (nippon thermostat)seal, thermostat cover (nippon thermostat)case, thermostat (nippon thermostat)o-ring (43.8x3.1)seal, thermostat case (nippon thermostat)outlet assy., waterseal, water outletpassage, waterjoint, oil coolerjoint, tubehose, bypass inletclamp, bypass hosepipe, heaterclamp, water hose (21.7mm) (chuo spring)clamp, water hose (21.7mm) (chuo spring)tube, air assist in.tube, air assist outletsensor assy., water temperature (keihin)bolt, stud (8x15)bolt (10x105)bolt, special (6x19) (nippon thermostat)bolt, special (6x28)o-ring (9.5x1.9)o-ring (13.5x3.5)o-ring (19.3x3.8)bolt, drain plug (14mm)bolt, stud (10x60)bolt-washer (6x12)nut, flange (8mm)nut, flange (10mm)washer, drain plug (14mm)clamp, tube (d12)clamp, tube (d12)bolt, flange (6x20)bolt, flange (6x25)bolt, flange (10x105)bolt, flange (6x14)
