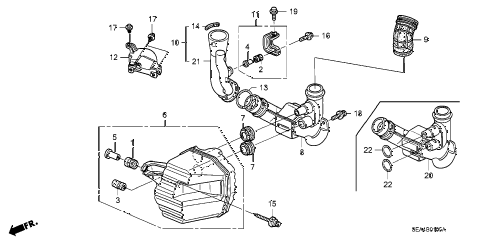

2006 TSX 4 DOOR 6MT RESONATOR CHAMBER diagram
  • 001

    rubber, air cleaner mounting

    • Part Number: 17212-P2J-J00

    '


    KA - US - 49 State Spec

    • $3.88

  • 002

    rubber, air cleaner housing mounting

    • Part Number: 17213-PD1-000

    '


    KA - US - 49 State Spec

    • $4.77

  • 003

    rubber b, resonator mounting

    • Part Number: 17213-P8C-A00

    '


    KA - US - 49 State Spec

    • $1.82

  • 004

    collar, air cleaner (toyo roki)

    • Part Number: 17216-PE2-003

    '


    KA - US - 49 State Spec

    • $3.60

  • 005

    collar, air cleaner mounting

    • Part Number: 17216-PN3-000

    '


    KA - US - 49 State Spec

    • $3.70

  • 006

    chamber set, resonator

    • Part Number: 17231-RBB-A00

    '


    KA - US - 49 State Spec

    • $122.88

  • 009

    tube, air cleaner connecting

    • Part Number: 17251-RBB-A00

    '


    KA - US - 49 State Spec

    • $17.83

  • 011

    stay assy., air in.

    • Part Number: 17254-RBA-000

    '


    KA - US - 49 State Spec

    • $7.77

  • 012

    cover, air in.

    • Part Number: 17255-RBA-010

    '


    KA - US - 49 State Spec

    • $11.70

  • 013

    ring, seal

    • Part Number: 17256-RBB-A00

    '


    KA - US - 49 State Spec

    • $4.63

  • 015

    bolt-washer, special (6x35)

    • Part Number: 90029-PHM-000

    '


    KA - US - 49 State Spec

    • $0.48

  • 016

    bolt, special (6x25)

    • Part Number: 90001-P7J-000

    '


    KA - US - 49 State Spec

    • $1.53

  • 017

    clip, cowl top

    • Part Number: 91505-SL0-003

    '


    KA - US - 49 State Spec

    • $4.30

  • 019

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 020

    tube set, air in.

    • Part Number: 17250-RBB-A00

    '


    KA - US - 49 State Spec

    • $47.82

  • 021

    tube b, air in.

    • Part Number: 17253-RBB-A00

    '


    KA - US - 49 State Spec

    • $27.60

  • 022

    ring, seal

    • Part Number: 17257-RBB-A00

    '


    KA - US - 49 State Spec

    • $2.73
