INSTRUMENT PANEL
View large diagramHide diagramView diagramView printable catalogTranslate

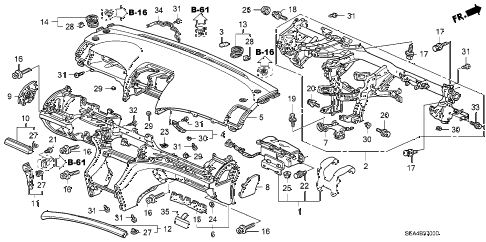

2006 TSX 4 DOOR 6MT INSTRUMENT PANEL diagram

  • 001

    module assy., passenger

    Part Number: 77820-SEC-A90

    ''


    KA - US - 49 State Spec

    • $1,080.57

  • 002

    beam, steering hanger

    Part Number: 61300-SEC-A02ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    cap, instrument panel stay

    Part Number: 66844-SA7-000

    ''


    KA - US - 49 State Spec

    • $10.30

  • 004

    stay assy., instrument center

    Part Number: 77106-SEC-A01ZZ

    ''


    KA - US - 49 State Spec

    • $7.08

  • 005

    panel assy., instrument (upper) *nh167l*

    Part Number: 77108-SEC-A51ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $617.22

  • 006

    panel assy., instrument (lower) *nh167l*

    Part Number: 77109-SEC-A51ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $231.47

  • 006

    panel assy., instrument (lower) *nh528l*

    Part Number: 77109-SEC-A51ZB
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    • $231.47

  • 006

    panel assy., instrument (lower) *yr240l*

    Part Number: 77109-SEC-A51ZC
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    • $231.47

  • 007

    bracket, joint center

    Part Number: 77113-SDA-A00ZZ

    ''


    KA - US - 49 State Spec

    • $34.92

  • 008

    lid, r. instrument side *nh167l*

    Part Number: 77210-SDA-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $102.92

  • 008

    lid, r. instrument side *yr240l*

    Part Number: 77210-SDA-A01ZE
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    lid, r. instrument side *nh528l*

    Part Number: 77210-SDA-A01ZF
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    lid, l. instrument side *nh167l*

    Part Number: 77215-SDA-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $102.92

  • 009

    lid, l. instrument side *yr240l*

    Part Number: 77215-SDA-A01ZE
    (LIGHT CREAM IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    lid, l. instrument side *nh528l*

    Part Number: 77215-SDA-A01ZF
    (MOON LAKE GRAY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    panel assy. a, driver *nh542l*

    Part Number: 77220-SEC-A01ZA
    (HIGH METAL)

    ''


    KA - US - 49 State Spec

    • $29.35

  • 010

    panel assy. a, driver *yr349l*

    Part Number: 77220-SEC-A11ZB
    (FIRE HORSE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    panel b, driver *nh542l*

    Part Number: 77241-SEC-A00ZA
    (HIGH METAL)

    ''


    KA - US - 49 State Spec

    • $33.33

  • 011

    panel b, driver *yr349l*

    Part Number: 77241-SEC-A10ZB
    (FIRE HORSE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    panel assy., assistant *nh542l*

    Part Number: 77260-SEC-A01ZA
    (HIGH METAL)

    ''


    KA - US - 49 State Spec

    • $68.40

  • 012

    panel assy., assistant *yr349l*

    Part Number: 77260-SEC-A11ZB
    (FIRE HORSE)

    ''


    KA - US - 49 State Spec

    • $145.03

  • 013

    garnish assy., r. side defroster *nh167l*

    Part Number: 77470-SEC-A01ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $9.52

  • 014

    garnish assy., l. side defroster *nh167l*

    Part Number: 77475-SEC-A01ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $9.52

  • 015

    blind, glove box

    Part Number: 77509-SEC-A00

    ''


    KA - US - 49 State Spec

    • $12.37

  • 016

    bolt-washer (5x16)

    Part Number: 90001-S10-010

    ''


    KA - US - 49 State Spec

    • $2.77

  • 017

    bolt-washer (8x25)

    Part Number: 90104-SV4-000

    ''


    KA - US - 49 State Spec

    • $3.93

  • 018

    bolt-washer (8x40)

    Part Number: 90106-S84-A00

    ''


    KA - US - 49 State Spec

    • $0.30

  • 019

    bolt-washer (8mm) (srs)

    Part Number: 90108-S84-A00

    ''


    KA - US - 49 State Spec

    • $0.33

  • 020

    bolt-washer (8x20)

    Part Number: 90110-S84-A00

    ''


    KA - US - 49 State Spec

    • $1.75

  • 021

    screw, tapping (3x10)

    Part Number: 90111-SDA-003

    ''


    KA - US - 49 State Spec

    • $0.43

  • 022

    bolt-washer (6x20)

    Part Number: 90178-SDB-003

    ''


    KA - US - 49 State Spec

    • $1.13

  • 023

    nut, spring (4mm)

    Part Number: 90302-SA4-003

    ''


    KA - US - 49 State Spec

    • $3.88

  • 024

    nut, push (3mm)

    Part Number: 90301-ST0-003

    ''


    KA - US - 49 State Spec

    • $1.78

  • 024

    nut, speed

    Part Number: 90310-SB2-003

    ''


    KA - US - 49 State Spec

    • $1.78

  • 025

    nut-washer (6mm)

    Part Number: 90321-SP0-A80

    ''


    KA - US - 49 State Spec

    • $0.43

  • 026

    cap, bolt (8mm)

    Part Number: 90651-S0A-003

    ''


    KA - US - 49 State Spec

    • $2.60

  • 027

    clip, snap fitting (po)(natural)

    Part Number: 90666-SDA-A01

    ''


    KA - US - 49 State Spec

    • $0.53

  • 028

    clip, fitting

    Part Number: 90666-SD4-003

    ''


    KA - US - 49 State Spec

    • $3.42

  • 029

    grommet, screw (4mm)

    Part Number: 91640-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.58

  • 030

    grommet, screw (4mm)

    Part Number: 91641-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.58

  • 031

    screw, tapping (4x16) (po)

    Part Number: 93913-14480

    ''


    KA - US - 49 State Spec

    • $0.58

  • 032

    screw, tapping (4x12) (po)

    Part Number: 93913-24280

    ''


    KA - US - 49 State Spec

    • $1.30

  • 033

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KA - US - 49 State Spec

    • $1.07

  • 034

    stay, instrument center driver

    Part Number: 77107-SEC-A01ZZ

    ''


    KA - US - 49 State Spec

    • $21.25

  • 035

    tag, passenger srs caution

    Part Number: 78527-TY2-A10

    ''


    KA - US - 49 State Spec

    • $3.18
