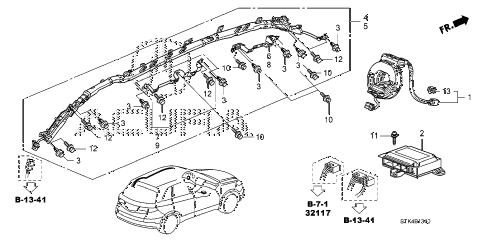

2007 RDX 5 DOOR 5AT SRS UNIT (1) diagram
  • 001

    reel assy., cable (furukawa)

    • Part Number: 77900-STK-A02

    '


    KA - US - 49 State Spec

    • $62.70

  • 002

    srs unit

    • Part Number: 77960-STK-A21

    '


    KA - US - 49 State Spec

    • $344.43

  • 003

    clip, side curtain airbag (8.5mm)

    • Part Number: 78819-STK-A81

    '


    KA - US - 49 State Spec

    • $4.28

  • 004

    module assy., r. side curtain airbag

    • Part Number: 78870-STK-A80

    '


    KA - US - 49 State Spec

    • $1,009.46

  • 005

    module assy., l. side curtain airbag

    • Part Number: 78875-STK-A80

    '


    KA - US - 49 State Spec

    • $1,250.08

  • 006

    bracket, r. fr. grab rail

    • Part Number: 83241-STK-A80

    '


    KA - US - 49 State Spec

    • $12.53

  • 007

    bracket set, r. rr. grab rail

    • Part Number: 83248-STK-A80

    '


    KA - US - 49 State Spec

    • $17.18

  • 008

    bracket, l. fr. grab rail

    • Part Number: 83291-STK-A80

    '


    KA - US - 49 State Spec

    • $14.98

  • 009

    bracket set, l. rr. grab rail

    • Part Number: 83298-STK-A80

    '


    KA - US - 49 State Spec

    • $17.18

  • 010

    bolt-washer (5x16)

    • Part Number: 90133-SDC-003

    '


    KA - US - 49 State Spec

    • $2.80

  • 011

    bolt, torx ground (6x20)

    • Part Number: 90137-S84-A01

    '


    KA - US - 49 State Spec

    • $3.62

  • 012

    bolt-washer (6x19) (side curtain airbag)

    • Part Number: 90178-SNA-003

    '


    KA - US - 49 State Spec

    • $0.88

  • 013

    clip, connector (beige)

    • Part Number: 91533-SDA-003

    '


    KA - US - 49 State Spec

    • $1.48

  • NI

    kit,module assy l

    • Part Number: 04801-STK-305

    '


    KA - US - 49 State Spec

    • $162.85

  • NI

    module assy., r. side

    • Part Number: 78050-STK-000

    '


    KA - US - 49 State Spec

    • $162.85
