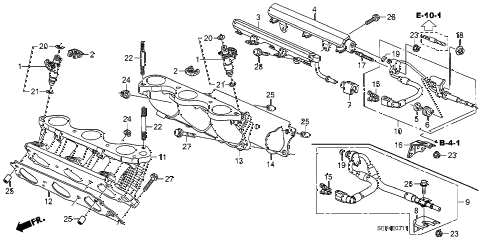

View large diagramHide diagramView diagramView printable catalog
  • 001

    injector assy., fuel

    • Part Number: 16450-RJA-A01

    '


    KA - US - 49 State Spec

    • $159.95

  • 002

    clip, injector

    • Part Number: 16451-RCA-A00

    '


    KA - US - 49 State Spec

    • $0.73

  • 003

    pipe, fr. fuel

    • Part Number: 16610-RKB-003

    '


    KA - US - 49 State Spec

    • $119.62

  • 004

    pipe, rr. fuel

    • Part Number: 16620-RKB-003

    '


    KA - US - 49 State Spec

    • $119.62

  • 007

    cover b, fuel connector (black)

    • Part Number: 16726-PWA-004

    '


    KA - US - 49 State Spec

    • $2.40

  • 008

    stay b

    • Part Number: 16726-RJA-A00

    '


    KA - US - 49 State Spec

    • $10.60

  • 009

    hose, fuel joint

    • Part Number: 16728-RJA-A01

    '


    KA - US - 49 State Spec

    • $141.00

  • 011

    base, fr. injector

    • Part Number: 17050-RDV-J00

    '


    KA - US - 49 State Spec

    • $113.55

  • 012

    gasket, fr. injector base

    • Part Number: 17055-RCA-A01

    '


    KA - US - 49 State Spec

    • $18.75

  • 013

    base, rr. injector

    • Part Number: 17060-RDV-J00

    '


    KA - US - 49 State Spec

    • $113.55

  • 014

    gasket, rr. injector base

    • Part Number: 17065-RCA-A01

    '


    KA - US - 49 State Spec

    • $18.75

  • 015

    retainer (blue green) (tokai)

    • Part Number: 17711-S0X-931

    '


    KA - US - 49 State Spec

    • $2.00

  • 017

    bolt, stud (6x32)

    • Part Number: 90041-PCA-000

    '


    KA - US - 49 State Spec

    • $2.88

  • 019

    o-ring (7.47x3.6)

    • Part Number: 91301-PLC-000

    '


    KA - US - 49 State Spec

    • $2.03

  • 020

    o-ring (7.52x3.52)

    • Part Number: 91301-RDV-J01

    '


    KA - US - 49 State Spec

    • $4.50

  • 021

    o-ring (8.9x2.9)

    • Part Number: 91302-RDV-J01

    '


    KA - US - 49 State Spec

    • $4.50

  • 022

    bolt, stud (8x60)

    • Part Number: 92900-08060-1B

    '


    KA - US - 49 State Spec

    • $1.62

  • 023

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23

  • 024

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25

  • 025

    pin, dowel (10x12)

    • Part Number: 94301-10120

    '


    KA - US - 49 State Spec

    • $2.43

  • 026

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 027

    bolt, flange (8x28)

    • Part Number: 95701-08028-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 028

    bolt, flange (6x16)

    • Part Number: 96001-06016-00

    '


    KA - US - 49 State Spec

    • $0.67

Back to Top
injector assy., fuelinjector assy., fuelclip, injectorclip, injectorpipe, fr. fuelpipe, rr. fuelcover b, fuel connector (black)stay bhose, fuel jointbase, fr. injectorgasket, fr. injector basebase, rr. injectorgasket, rr. injector baseretainer (blue green) (tokai)retainer (blue green) (tokai)bolt, stud (6x32)o-ring (7.47x3.6)o-ring (7.47x3.6)o-ring (7.52x3.52)o-ring (7.52x3.52)o-ring (8.9x2.9)o-ring (8.9x2.9)bolt, stud (8x60)bolt, stud (8x60)nut, flange (6mm)nut, flange (6mm)nut, flange (6mm)nut, flange (8mm)nut, flange (8mm)pin, dowel (10x12)pin, dowel (10x12)pin, dowel (10x12)pin, dowel (10x12)bolt, flange (6x12)bolt, flange (8x28)bolt, flange (8x28)bolt, flange (6x16)bolt, flange (6x16)
