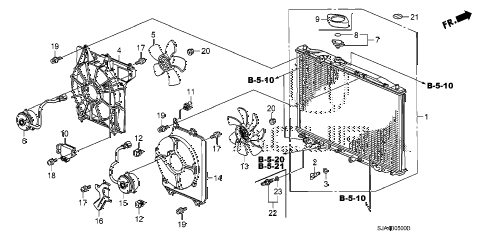

View large diagramHide diagramView diagramView printable catalog
  • 001

    radiator

    • Part Number: 19010-RJA-J53

    '


    KA - US - 49 State Spec

    • $594.80

  • 002

    bolt, drain (denso)

    • Part Number: 19011-PH1-621

    '


    KA - US - 49 State Spec

    • $6.60

  • 003

    gasket, drain (denso)

    • Part Number: 19012-671-300

    '


    KA - US - 49 State Spec

    • $2.07

  • 004

    shroud (denso)

    • Part Number: 19015-RJA-J01

    '


    KA - US - 49 State Spec

    • $108.35

  • 005

    fan, cooling (denso)

    • Part Number: 19020-RJA-J01

    '


    KA - US - 49 State Spec

    • $48.05

  • 007

    cap, radiator (denso)

    • Part Number: 19045-RAA-003

    '


    KA - US - 49 State Spec

    • $16.13

  • 008

    label, radiator cap

    • Part Number: 19046-RAA-A00

    '


    KA - US - 49 State Spec

    • $2.55

  • 009

    cover, radiator cap (denso)

    • Part Number: 19047-PLC-003

    '


    KA - US - 49 State Spec

    • $5.65

  • 010

    rfc unit (denso)

    • Part Number: 19090-RKB-003

    '


    KA - US - 49 State Spec

    • $271.80

  • 011

    clamp, reserve tank tube (black)

    • Part Number: 19108-PM0-003

    '


    KA - US - 49 State Spec

    • $3.70

  • 012

    clip, harness (gray)

    • Part Number: 32175-RJA-J01

    '


    KA - US - 49 State Spec

    • $3.17

  • 013

    fan, cooling (denso)

    • Part Number: 38611-RJA-J01

    '


    KA - US - 49 State Spec

    • $46.02

  • 014

    sub shroud (denso)

    • Part Number: 38615-RJA-J01

    '


    KA - US - 49 State Spec

    • $90.22

  • 015

    motor, cooling fan (denso)

    • Part Number: 38616-RJA-J01

    '


    KA - US - 49 State Spec

    • $272.22

  • 016

    cover, fan motor (denso)

    • Part Number: 38619-RJA-J01

    '


    KA - US - 49 State Spec

    • $15.65

  • 017

    screw-washer (4x11)

    • Part Number: 90051-P5A-004

    '


    KA - US - 49 State Spec

    • $1.68

  • 018

    screw-washer (4x14)

    • Part Number: 90041-RKB-003

    '


    KA - US - 49 State Spec

    • $1.85

  • 019

    bolt-washer (6x16) (denso)

    • Part Number: 90042-PAA-A01

    '


    KA - US - 49 State Spec

    • $1.37

  • 020

    nut, hex. (5mm) (denso)

    • Part Number: 90043-PD2-003

    '


    KA - US - 49 State Spec

    • $4.58

Back to Top
radiatorbolt, drain (denso)gasket, drain (denso)shroud (denso)fan, cooling (denso)cap, radiator (denso)label, radiator capcover, radiator cap (denso)rfc unit (denso)clamp, reserve tank tube (black)clip, harness (gray)clip, harness (gray)fan, cooling (denso)sub shroud (denso)motor, cooling fan (denso)cover, fan motor (denso)screw-washer (4x11)screw-washer (4x11)screw-washer (4x11)screw-washer (4x14)bolt-washer (6x16) (denso)bolt-washer (6x16) (denso)bolt-washer (6x16) (denso)nut, hex. (5mm) (denso)nut, hex. (5mm) (denso)
