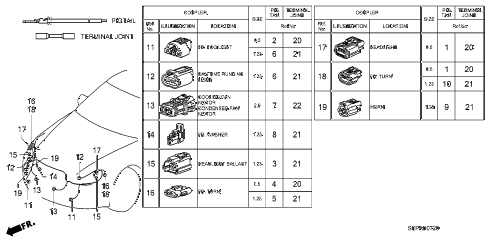

2008 TL TYPE-S 4 DOOR 6MT ELECTRICAL CONNECTOR (FR.) diagram
  • 001

    sub-cord (0.5) (10 pieces) (yellow)

    • Part Number: 04320-SAA-A00

    '


    KA - US - 49 State Spec

    • $10.13

  • 002

    sub-cord (0.5) (10 pieces) (yellow)

    • Part Number: 04320-SP0-A10

    '


    KA - US - 49 State Spec

    • $45.82

  • 003

    pigtail (1.25) (10 pieces) (red)

    • Part Number: 04320-SP0-D00

    '


    KA - US - 49 State Spec

    • $17.53

  • 004

    pigtail (0.5) (10 pieces) (yellow)

    • Part Number: 04320-SP0-E00

    '


    KA - US - 49 State Spec

    • $25.37

  • 005

    pigtail (1.25) (10 pieces) (red)

    • Part Number: 04320-SP0-F00

    '


    KA - US - 49 State Spec

    • $28.55

  • 006

    sub-cord (1.25) (10 pieces) (red)

    • Part Number: 04320-SP0-N00

    '


    KA - US - 49 State Spec

    • $47.32

  • 007

    kit, pigtail (2.0) (10 pieces)(blue)

    • Part Number: 04320-SP0-N10

    '


    KA - US - 49 State Spec

    • $10.33

  • 008

    pigtail (1.25) (10 pieces) (red)

    • Part Number: 04320-SP0-T00

    '


    KA - US - 49 State Spec

    • $19.32

  • 009

    pigtail (1.25) (10 pieces) (red)

    • Part Number: 04320-SP0-U10

    '


    KA - US - 49 State Spec

    • $17.45

  • 011

    connector (2p 110f) (5 pieces)

    • Part Number: 04321-SAA-305

    '


    KA - US - 49 State Spec

    • $41.45

  • 012

    connector (2p 110f) (5 pieces)

    • Part Number: 04321-SH3-305

    '


    KA - US - 49 State Spec

    • $32.80

  • 013

    kit connector, waterproof (2p 250f) (5 pieces)

    • Part Number: 04321-SM4-305

    '


    KA - US - 49 State Spec

    • $11.25

  • 014

    connector (2p 250f) (5 pieces)

    • Part Number: 04321-SM4-405

    '


    KA - US - 49 State Spec

    • $13.65

  • 015

    connector, waterproof (2p 090f) (5 pieces)

    • Part Number: 04321-SM4-406

    '


    KA - US - 49 State Spec

    • $31.10

  • 016

    connector, waterproof (3p 090 f) (5 pieces)

    • Part Number: 04321-SR3-308

    '


    KA - US - 49 State Spec

    • $13.12

  • 017

    connector, waterproof (3p 040f) (5 pieces)

    • Part Number: 04321-S0X-305

    '


    KA - US - 49 State Spec

    • $5.17

  • 019

    connector, waterproof (1p 090f) (5 pieces)

    • Part Number: 04321-S87-305

    '


    KA - US - 49 State Spec

    • $2.75

  • 020

    joint, terminal (0.5) (25 pieces) (yellow)

    • Part Number: 04323-SP0-A01

    '


    KA - US - 49 State Spec

    • $37.65

  • 021

    joint, terminal (1.25) (25 pieces) (red)

    • Part Number: 04323-SP0-A11

    '


    KA - US - 49 State Spec

    • $46.15

  • 022

    joint, terminal (2.0) (25 pieces) (blue)

    • Part Number: 04323-SP0-A21

    '


    KA - US - 49 State Spec

    • $39.00
