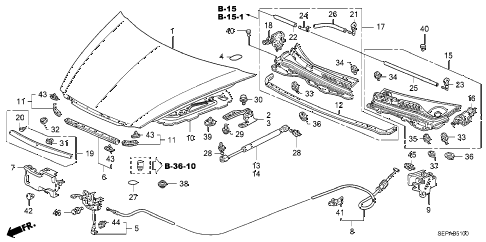

2008 TL TYPE-S 4 DOOR 6MT ENGINE HOOD diagram
  • 001

    hood, engine (dot)

    • Part Number: 60100-SEP-A90ZZ

    '


    KA - US - 49 State Spec

    • $631.18

  • 002

    hinge, r. hood

    • Part Number: 60120-SEP-A00ZZ

    '


    KA - US - 49 State Spec

    • $20.83

  • 003

    hinge, l. hood

    • Part Number: 60170-SEP-A00ZZ

    '


    KA - US - 49 State Spec

    • $20.83

  • 004

    seal, rr. floor hole

    • Part Number: 70256-SB2-000

    '


    KA - US - 49 State Spec

    • $2.58

  • 005

    lock assy., hood

    • Part Number: 74120-SEP-A01

    '


    KA - US - 49 State Spec

    • $117.87

  • 006

    rubber, hood seal

    • Part Number: 74121-S0K-A00

    '


    KA - US - 49 State Spec

    • $12.32

  • 007

    cover, hood lock

    • Part Number: 74125-SDA-A00

    '


    KA - US - 49 State Spec

    • $14.90

  • 008

    wire assy., hood

    • Part Number: 74130-SEP-A01

    '


    KA - US - 49 State Spec

    • $10.65

  • 009

    lever, hood wire *nh167l*

    • Part Number: 74135-SDA-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $15.32

  • 010

    insulator, hood

    • Part Number: 74141-SEP-A10

    '


    KA - US - 49 State Spec

    • $125.35

  • 011

    rubber, hood corner

    • Part Number: 74142-SEP-A00

    '


    KA - US - 49 State Spec

    • $4.17

  • 012

    rubber, rr. hood seal

    • Part Number: 74143-SEP-A00

    '


    KA - US - 49 State Spec

    • $13.38

  • 013

    stay assy., r. hood opener

    • Part Number: 74145-SEP-H01

    '


    KA - US - 49 State Spec

    • $36.72

  • 014

    stay assy., l. hood opener

    • Part Number: 74149-SEP-H01

    '


    KA - US - 49 State Spec

    • $43.20

  • 015

    cowl top assy., fr. driver

    • Part Number: 74210-SEP-A00

    '


    KA - US - 49 State Spec

    • $371.22

  • 016

    cover, driver hood hinge

    • Part Number: 74212-SEP-A00

    '


    KA - US - 49 State Spec

    • $120.13

  • 017

    cowl top assy., fr. passenger

    • Part Number: 74220-SEP-A00

    '


    KA - US - 49 State Spec

    • $266.58

  • 018

    cover, hood hinge (passenger side)

    • Part Number: 74222-SEP-A00

    '


    KA - US - 49 State Spec

    • $85.78

  • 019

    molding assy., hood *tchrome*

    • Part Number: 75120-SEP-A10ZA

    (CHROMIUM PLATING)

    '


    KA - US - 49 State Spec

    • $67.50

  • 020

    bolt, special

    • Part Number: 75126-S5A-003

    '


    KA - US - 49 State Spec

    • $2.58

  • 021

    nozzle assy., washer

    • Part Number: 76815-SDA-A11

    '


    KA - US - 49 State Spec

    • $12.43

  • 022

    tube (4x7x380)

    • Part Number: 76812-SEP-A01

    '


    KA - US - 49 State Spec

    • $15.12

  • 023

    nozzle assy., washer

    • Part Number: 76815-SDA-A11

    '


    KA - US - 49 State Spec

    • $12.43

  • 024

    joint y, tube (denso)

    • Part Number: 76830-SR0-004

    '


    KA - US - 49 State Spec

    • $6.75

  • 025

    tube (4x7x710)

    • Part Number: 76839-SEP-A01

    '


    KA - US - 49 State Spec

    • $16.85

  • 026

    tube

    • Part Number: 76852-SEP-A01

    '


    KA - US - 49 State Spec

    • $9.50

  • 027

    protection, tailgate (20mm) (circle)

    • Part Number: 85268-SA0-000

    '


    KA - US - 49 State Spec

    • $2.08

  • 028

    stud, ball

    • Part Number: 85269-SH3-003

    '


    KA - US - 49 State Spec

    • $6.43

  • 029

    bolt, flange (6x18)

    • Part Number: 90107-SDA-A00

    '


    KA - US - 49 State Spec

    • $0.97

  • 030

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '


    KA - US - 49 State Spec

    • $0.30

  • 031

    clip, hood molding

    • Part Number: 90157-S3N-003

    '


    KA - US - 49 State Spec

    • $1.22

  • 032

    nut, special (4mm)

    • Part Number: 90313-SE0-000

    '


    KA - US - 49 State Spec

    • $0.62

  • 033

    clip, cowl top

    • Part Number: 90602-SX0-003

    '


    KA - US - 49 State Spec

    • $2.25

  • 034

    clip, cowl top

    • Part Number: 90602-S5A-003

    '


    KA - US - 49 State Spec

    • $2.42

  • 035

    clip, cowl top

    • Part Number: 90602-S7S-003

    '


    KA - US - 49 State Spec

    • $3.12

  • 036

    grommet, cowl top

    • Part Number: 90603-SX0-003

    '


    KA - US - 49 State Spec

    • $2.48

  • 037

    grommet, cowl top

    • Part Number: 90603-S7S-003

    '


    KA - US - 49 State Spec

    • $1.38

  • 038

    grommet (25mm)

    • Part Number: 90825-SNA-003

    '


    KA - US - 49 State Spec

    • $0.28

  • 039

    clip, engine hood insulator

    • Part Number: 91501-STK-003

    '


    KA - US - 49 State Spec

    • $0.25

  • 040

    clip, fr. cowl

    • Part Number: 91501-SL4-003

    '


    KA - US - 49 State Spec

    • $2.87

  • 041

    clip, hood open wire

    • Part Number: 91504-SDA-003

    '


    KA - US - 49 State Spec

    • $1.03

  • 042

    clip, anchor

    • Part Number: 91515-SM4-003

    '


    KA - US - 49 State Spec

    • $0.52

  • 043

    clip a, door weatherstrip

    • Part Number: 91530-SP1-003

    '


    KA - US - 49 State Spec

    • $2.92

  • 044

    clip, connector (natural)

    • Part Number: 91565-SD5-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 045

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 046

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02
