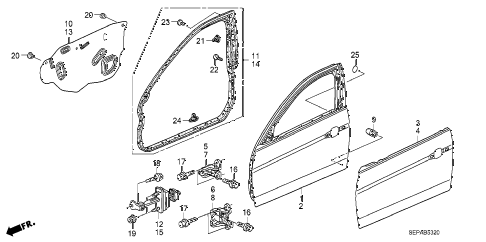

2008 TL TYPE-S 4 DOOR 6MT FRONT DOOR PANELS diagram
  • 001

    panel, r. fr. door (dot)

    • Part Number: 67010-SEP-A91ZZ

    '


    KA - US - 49 State Spec

    • $1,014.48

  • 002

    panel, l. fr. door (dot)

    • Part Number: 67050-SEP-A91ZZ

    '


    KA - US - 49 State Spec

    • $1,014.48

  • 003

    skin set, r. fr. door

    • Part Number: 67111-SEP-A00ZZ

    '


    KA - US - 49 State Spec

    • $265.63

  • 004

    skin set, l. fr. door

    • Part Number: 67151-SEP-A00ZZ

    '


    KA - US - 49 State Spec

    • $262.65

  • 005

    hinge, r. fr. door (upper)

    • Part Number: 67410-S5D-A01ZZ

    '


    KA - US - 49 State Spec

    • $23.25

  • 006

    hinge, r. fr. door (lower)

    • Part Number: 67420-SDA-A01ZZ

    '


    KA - US - 49 State Spec

    • $27.92

  • 007

    hinge, l. fr. door (upper)

    • Part Number: 67450-S5D-A01ZZ

    '


    KA - US - 49 State Spec

    • $23.25

  • 008

    hinge, l. fr. door (lower)

    • Part Number: 67460-SDA-A01ZZ

    '


    KA - US - 49 State Spec

    • $27.92

  • 009

    stopper, door

    • Part Number: 72142-SM4-000

    '


    KA - US - 49 State Spec

    • $3.78

  • 010

    seal, r. fr. door hole

    • Part Number: 72321-SEP-A00

    '


    KA - US - 49 State Spec

    • $23.28

  • 011

    sub-seal, r. fr. door

    • Part Number: 72325-SEP-A11

    '


    KA - US - 49 State Spec

    • $54.07

  • 012

    checker, r. fr. door

    • Part Number: 72340-SEP-A01

    '


    KA - US - 49 State Spec

    • $39.90

  • 013

    seal, l. fr. door hole

    • Part Number: 72361-SEP-A00

    '


    KA - US - 49 State Spec

    • $23.28

  • 014

    sub-seal, l. fr. door

    • Part Number: 72365-SEP-A11

    '


    KA - US - 49 State Spec

    • $54.07

  • 015

    checker, l. fr. door

    • Part Number: 72380-SEP-A01

    '


    KA - US - 49 State Spec

    • $39.90

  • 016

    bolt, flange (8x22) (8.5mm)

    • Part Number: 90101-SZ3-000

    '


    KA - US - 49 State Spec

    • $3.25

  • 017

    bolt, flange (8x24.5) (10.5mm)

    • Part Number: 90102-S3N-003

    '


    KA - US - 49 State Spec

    • $0.87

  • 017

    bolt, flange (8x18) (service)

    • Part Number: 90102-SFA-305

    '


    KA - US - 49 State Spec

    • $2.43

  • 018

    bolt, flange (8x22)

    • Part Number: 90141-S04-000

    '


    KA - US - 49 State Spec

    • $1.17

  • 019

    nut, flange (6mm)

    • Part Number: 90341-SDA-000

    '


    KA - US - 49 State Spec

    • $0.45

  • 020

    grommet (11mm)

    • Part Number: 90811-SNA-003

    '


    KA - US - 49 State Spec

    • $0.28

  • 021

    clip, sub-seal

    • Part Number: 91530-S0A-003

    '


    KA - US - 49 State Spec

    • $2.62

  • 022

    clip

    • Part Number: 91567-SR2-013

    '


    KA - US - 49 State Spec

    • $2.87

  • 023

    clip, door sub-seal

    • Part Number: 91567-S3M-000

    '


    KA - US - 49 State Spec

    • $2.62

  • 024

    clip, door weatherstrip

    • Part Number: 91568-SEP-003

    '


    KA - US - 49 State Spec

    • $0.43

  • 025

    seal, door panel hole

    • Part Number: 91651-S84-A01

    '


    KA - US - 49 State Spec

    • $1.00
