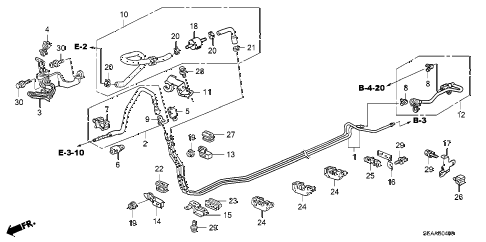

2008 TSX 4 DOOR 5AT FUEL PIPE diagram
  • 001

    pipe assy., fuel

    • Part Number: 16050-SEC-A00

    '


    KA - US - 49 State Spec

    • $81.33

  • 002

    hose b, fuel feed

    • Part Number: 16722-RBA-G01

    '


    KA - US - 49 State Spec

    • $55.58

  • 003

    bracket, fuel feed hose

    • Part Number: 16723-RBA-G00

    '


    KA - US - 49 State Spec

    • $9.67

  • 004

    clamp, fuel hose (natural)

    • Part Number: 16725-RAC-003

    '


    KA - US - 49 State Spec

    • $2.42

  • 005

    cover a, fuel connector

    • Part Number: 16725-RBA-J00

    '


    KA - US - 49 State Spec

    • $3.23

  • 006

    cover b, fuel connector (blue)

    • Part Number: 16726-RBA-J00

    '


    KA - US - 49 State Spec

    • $3.23

  • 007

    clamp, fuel hose (black)

    • Part Number: 16727-PND-004

    '


    KA - US - 49 State Spec

    • $2.43

  • 008

    retainer (orange) (tokai)

    • Part Number: 17711-S0X-003

    '


    KA - US - 49 State Spec

    • $1.97

  • 009

    retainer (white) (sanoh)

    • Part Number: 17711-S0X-004

    '


    KA - US - 49 State Spec

    • $5.62

  • 010

    hose assy., fuel purge

    • Part Number: 17717-SEC-A01

    '


    KA - US - 49 State Spec

    • $43.45

  • 011

    stay, purge hose

    • Part Number: 17718-SEA-020

    '


    KA - US - 49 State Spec

    • $4.42

  • 012

    tube, fuel purge

    • Part Number: 17724-SDA-A01

    '


    KA - US - 49 State Spec

    • $52.22

  • 013

    stay a, fuel pipe

    • Part Number: 17761-SDA-A00

    '


    KA - US - 49 State Spec

    • $7.32

  • 014

    stay b, fuel pipe

    • Part Number: 17762-SDA-A00

    '


    KA - US - 49 State Spec

    • $3.05

  • 015

    stay c, fuel pipe

    • Part Number: 17763-SDA-A01

    '


    KA - US - 49 State Spec

    • $11.32

  • 016

    stay d, fuel pipe

    • Part Number: 17764-SDA-A01

    '


    KA - US - 49 State Spec

    • $9.20

  • 017

    stay e, fuel pipe

    • Part Number: 17765-SDA-A00

    '


    KA - US - 49 State Spec

    • $3.53

  • 018

    joint, purge

    • Part Number: 36166-PAA-A01

    '


    KA - US - 49 State Spec

    • $11.43

  • 019

    nut, paint cutting (6mm)

    • Part Number: 90361-SV4-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 020

    clamp, tube (d13.0)

    • Part Number: 91408-SDB-000

    '


    KA - US - 49 State Spec

    • $2.18

  • 021

    clamp, fuel tube (d15.5)

    • Part Number: 91412-SDC-L01

    '


    KA - US - 49 State Spec

    • $1.72

  • 022

    rubber a, fuel pipe insulator

    • Part Number: 91594-SDA-A00

    '


    KA - US - 49 State Spec

    • $6.35

  • 023

    rubber b, fuel pipe insulator

    • Part Number: 91595-SDA-A00

    '


    KA - US - 49 State Spec

    • $6.35

  • 024

    clamp c, fuel pipe

    • Part Number: 91596-SDA-A01

    '


    KA - US - 49 State Spec

    • $4.42

  • 025

    clamp d, fuel pipe

    • Part Number: 91597-SDA-A01

    '


    KA - US - 49 State Spec

    • $4.82

  • 026

    clamp f, fuel pipe

    • Part Number: 91598-SDA-A01

    '


    KA - US - 49 State Spec

    • $2.62

  • 027

    rubber e, fuel pipe insulator

    • Part Number: 91599-SDA-A00

    '


    KA - US - 49 State Spec

    • $27.18

  • 028

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 029

    bolt-washer (6x16)

    • Part Number: 93403-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 030

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec

    • $0.88
