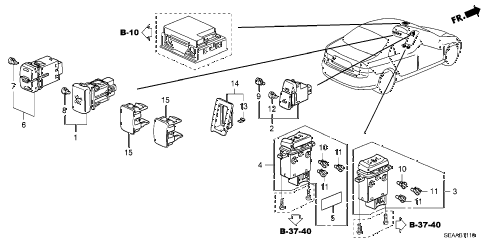

2008 TSX 4 DOOR 5AT SWITCH diagram
  • 001

    switch assy., vsa off

    • Part Number: 35300-SEA-J01

    '


    KA - US - 49 State Spec

    • $41.58

  • 002

    switch assy., hazard & passenger srs indicator

    • Part Number: 35510-SEC-A11

    '


    KA - US - 49 State Spec

    • $71.40

  • 003

    switch assy., r. heated seat

    • Part Number: 35600-SEC-A01

    '


    KA - US - 49 State Spec

    • $53.03

  • 004

    switch assy., l. heated seat

    • Part Number: 35650-SEC-A01

    '


    KA - US - 49 State Spec

    • $47.68

  • 005

    tape

    • Part Number: 35651-SDA-A01

    '


    KA - US - 49 State Spec

    • $2.14

  • 006

    switch assy., sunroof

    • Part Number: 35830-SDA-A01

    '


    KA - US - 49 State Spec

    • $30.83

  • 007

    bulb (14v 40ma)

    • Part Number: 35850-SDA-A01

    '


    KA - US - 49 State Spec

    • $4.60

  • 008

    bulb (14v 40ma)

    • Part Number: 35850-SEA-J01

    '


    KA - US - 49 State Spec

    • $5.87

  • 009

    bulb (14v 60ma)

    • Part Number: 35850-SEC-A11

    '


    KA - US - 49 State Spec

    • $5.87

  • 010

    bulb (14v 40ma)

    • Part Number: 35852-SDA-A01

    '


    KA - US - 49 State Spec

    • $5.33

  • 011

    bulb (14v 60ma)

    • Part Number: 35853-SDA-A01

    '


    KA - US - 49 State Spec

    • $4.60

  • 012

    bulb, neo-wedge (14v 40ma)

    • Part Number: 35871-SAA-003

    '


    KA - US - 49 State Spec

    • $4.60

  • 012

    bulb, neo-wedge (14v 80ma)

    • Part Number: 35871-SDA-L01

    '


    KA - US - 49 State Spec

    • $4.60

  • 013

    clip, snap fitting

    • Part Number: 77205-S0X-A01

    '


    KA - US - 49 State Spec

    • $4.25

  • 014

    garnish assy. *nh167l*

    • Part Number: 77256-SEC-A51ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $15.40

  • 015

    lid, switch hole *nh167l*

    • Part Number: 77625-SEC-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $5.33

  • 015

    lid, switch hole *nh528l*

    • Part Number: 77625-SEC-A01ZB

    (MOON LAKE GRAY)

    '


    KA - US - 49 State Spec

    • $5.33

  • 015

    lid, switch hole *yr240l*

    • Part Number: 77625-SEC-A01ZC

    (LIGHT CREAM IVORY)

    '


    KA - US - 49 State Spec

    • $5.33
