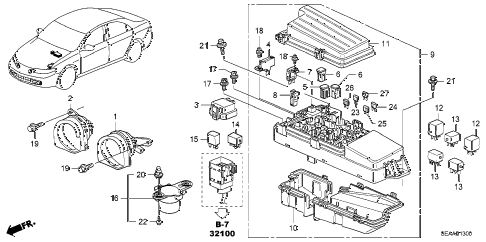

2008 TSX 4 DOOR 5AT CONTROL UNIT (ENGINE ROOM) diagram
Back to Top
horn assy. (low) (mitsuba)horn assy. (high) (mitsuba)cover, relay block (upper) (2p)fuse a, multi block (100a/70a)fuse, block (30a)fuse, block (40a)fuse, block (40a)fuse b, multi block (50a/50a)puller, mini fusebox assy., relaycover (lower)cover (upper)relay assy. (micro iso) (omron)relay assy. (micro iso) (omron)relay assy., power (micro iso)(mitsuba)relay assy., power (micro iso)(mitsuba)relay assy., power (micro iso)(mitsuba)buzzer assy., keylessbolt (6x15)bolt (6x15)screw-washer (5x16)screw-washer (5x16)bolt, ground (8x16)bolt, ground (8x16)grommet, screw (5mm)bolt-washer (6x20)bolt-washer (6x20)screw, tapping (5x16)fuse, mini (7.5a)fuse, mini (10a)fuse, mini (15a)fuse, mini (20a)fuse, mini (30a)
