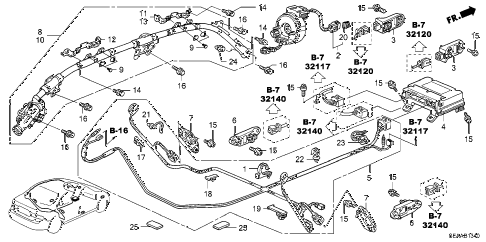

2008 TSX 4 DOOR 5AT SRS UNIT diagram
Back to Top
band, wire harness offset (20)(122.5mm) (black)reel assy., cable (furukawa)sensor assy., fr. crash (trw)sensor assy., fr. crash (trw)srs unit (trw)sub-wire harness, side curtainairbag (include feeder)sensor assy., side impact (trw)sensor assy., side impact (trw)sensor assy., side impact (trw)sensor assy., side impact (trw)module assy., r. side curtain airbagbolt (5x12)bolt (5x12)module assy., l. side curtain airbagbracket, r. fr. grab railbracket, rr. grab railbracket, l. fr. grab railbolt-washer (5x16)bolt-washer (5x16)bolt-washer (5x16)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt, torx ground (6x20)bolt-washer (6x20)bolt-washer (6x20)bolt-washer (6x20)bolt-washer (6x20)bolt-washer (6x20)clip, wire harness (50mm) (black)(harness taping)clip, wire harness (44mm) (natural)clip, wire harness (44mm) (natural)(w/seal)clip, connector (natural)clip, harness band (96.9mm) (natural)clip, harness band (145.2mm) (natural)(w/seal)clip, door lining (natural)plaster, wire harness (50x100)plaster, wire harness (50x100)
