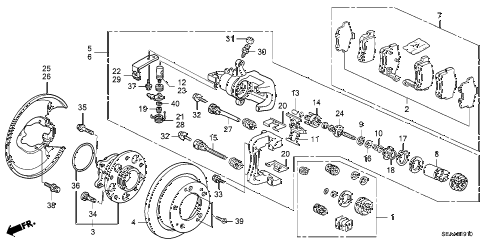

View large diagramHide diagramView diagramView printable catalog
  • 001

    caliper set, rr.

    • Part Number: 01473-SV4-000

    '


    KA - US - 49 State Spec

    • $29.17

  • 002

    shim set, rr.

    • Part Number: 06435-S84-J00

    '


    KA - US - 49 State Spec

    • $15.99

  • 003

    bearing assy., rr. hub unit

    • Part Number: 42200-SEA-951

    '


    KA - US - 49 State Spec

    • $252.18

  • 004

    disk, rr. brake

    • Part Number: 42510-SDA-A00

    '


    KA - US - 49 State Spec

    • $96.57

  • 005

    caliper sub-assy., r. rr.

    • Part Number: 43018-SDA-A00

    '


    KA - US - 49 State Spec

    • $189.85

  • 005

    caliper sub-assy., r. rr. (rmd)

    • Part Number: 43018-SDA-A00RM

    '


    KA - US - 49 State Spec

    • $182.47

  • 006

    caliper sub-assy., l. rr.

    • Part Number: 43019-SDA-A00

    '


    KA - US - 49 State Spec

    • $189.85

  • 006

    caliper sub-assy., l. rr. (rmd)

    • Part Number: 43019-SDA-A00RM

    '


    KA - US - 49 State Spec

    • $182.47

  • 007

    pad set, rr.

    • Part Number: 43022-SV4-G22

    '


    KA - US - 49 State Spec

    • $65.00

  • 007

    pad set, rr.

    • Part Number: 43022-SV4-G23

    '


    KA - US - 49 State Spec

    • $65.00

  • 008

    piston assy.

    • Part Number: 43215-SM4-951

    '


    KA - US - 49 State Spec

    • $55.93

  • 009

    bearing a

    • Part Number: 43223-SD2-932

    '


    KA - US - 49 State Spec

    • $8.95

  • 010

    spring b, adjusting

    • Part Number: 43224-SD2-931

    '


    KA - US - 49 State Spec

    • $4.33

  • 011

    spring, pad

    • Part Number: 43227-SG0-013

    '


    KA - US - 49 State Spec

    • $9.78

  • 012

    shaft a

    • Part Number: 43228-SD2-933

    '


    KA - US - 49 State Spec

    • $17.97

  • 013

    rod

    • Part Number: 43229-SD2-931

    '


    KA - US - 49 State Spec

    • $4.53

  • 014

    piston, sleeve

    • Part Number: 43233-S5A-J01

    '


    KA - US - 49 State Spec

    • $13.62

  • 015

    pin a

    • Part Number: 43235-S84-A51

    '


    KA - US - 49 State Spec

    • $6.55

  • 016

    spacer

    • Part Number: 43236-S04-003

    '


    KA - US - 49 State Spec

    • $4.37

  • 017

    ring, retaining

    • Part Number: 43238-SF1-003

    '


    KA - US - 49 State Spec

    • $5.73

  • 018

    guide, spring

    • Part Number: 43241-SF1-003

    '


    KA - US - 49 State Spec

    • $6.75

  • 019

    nut, parking

    • Part Number: 43243-SD2-931

    '


    KA - US - 49 State Spec

    • $5.82

  • 020

    retainer

    • Part Number: 43244-SG0-003

    '


    KA - US - 49 State Spec

    • $7.67

  • 021

    spring, return

    • Part Number: 43246-S84-A51

    '


    KA - US - 49 State Spec

    • $5.68

  • 022

    arm, r.

    • Part Number: 43247-S84-A52

    '


    KA - US - 49 State Spec

    • $12.82

  • 023

    shaft b

    • Part Number: 43248-SD2-933

    '


    KA - US - 49 State Spec

    • $17.97

  • 024

    bolt, adjuster

    • Part Number: 43249-S04-003

    '


    KA - US - 49 State Spec

    • $12.88

  • 025

    splash guard, r. rr.

    • Part Number: 43253-SEA-000

    '


    KA - US - 49 State Spec

    • $28.33

  • 026

    splash guard, l. rr.

    • Part Number: 43254-SEA-000

    '


    KA - US - 49 State Spec

    • $28.33

  • 027

    pin b

    • Part Number: 43262-S84-A51

    '


    KA - US - 49 State Spec

    • $3.63

  • 028

    spring, return

    • Part Number: 43266-S84-A51

    '


    KA - US - 49 State Spec

    • $5.68

  • 029

    arm, l.

    • Part Number: 43267-S84-A52

    '


    KA - US - 49 State Spec

    • $12.82

  • 030

    screw, bleeder

    • Part Number: 43352-SM4-951

    '


    KA - US - 49 State Spec

    • $5.42

  • 031

    cap, bleeder screw

    • Part Number: 43353-SD5-003

    '


    KA - US - 49 State Spec

    • $3.28

  • 032

    bolt, flange (8x22)

    • Part Number: 45240-SC2-003

    '


    KA - US - 49 State Spec

    • $5.45

  • 033

    bolt, flange (10x30)

    • Part Number: 90103-SV4-013

    '


    KA - US - 49 State Spec

    • $4.22

  • 034

    bolt, wheel (saga)

    • Part Number: 90113-SA0-006

    '


    KA - US - 49 State Spec

    • $5.62

  • 034

    bolt, wheel (rocknel fastener)

    • Part Number: 90113-SM1-005

    '


    KA - US - 49 State Spec

    • $1.83

  • 035

    bolt, flange (10x70)

    • Part Number: 90163-SEA-000

    '


    KA - US - 49 State Spec

    • $2.87

  • 036

    o-ring (73x1.3)

    • Part Number: 91352-SL0-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 037

    bolt-washer (10x25)

    • Part Number: 93402-10025-08

    '


    KA - US - 49 State Spec

    • $1.30

  • 038

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 039

    screw, flat (6x14)

    • Part Number: 93600-06014-0H

    '


    KA - US - 49 State Spec

    • $0.60

  • 040

    washer, spring (10mm)

    • Part Number: 94111-10800

    '


    KA - US - 49 State Spec

    • $0.63
