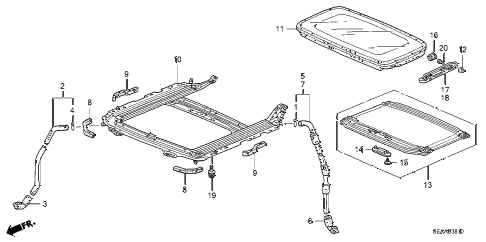

2008 TSX 4 DOOR 5AT SLIDING ROOF diagram
  • 001

    clip, air hose (16mm)

    • Part Number: 18534-634-670

    '


    KA - US - 49 State Spec

    • $4.03

  • 002

    tube, fr. drain vinyl (sunroof)

    • Part Number: 70050-SDA-A00

    '


    KA - US - 49 State Spec

    • $4.95

  • 003

    valve, fr. drain (sunroof)

    • Part Number: 70052-S6A-J00

    '


    KA - US - 49 State Spec

    • $7.35

  • 004

    clip, sunroof drain tube

    • Part Number: 70057-SNA-A00

    '


    KA - US - 49 State Spec

    • $0.78

  • 005

    tube, r. rr. drain vinyl (sunroof)

    • Part Number: 70060-SEA-J11

    '


    KA - US - 49 State Spec

    • $15.07

  • 006

    valve, rr. drain (sunroof)

    • Part Number: 70062-SDA-A00

    '


    KA - US - 49 State Spec

    • $1.97

  • 007

    tube, l. rr. drain vinyl (sunroof)

    • Part Number: 70065-SEA-J11

    '


    KA - US - 49 State Spec

    • $15.07

  • 008

    seal a, frame

    • Part Number: 70081-SDA-A01

    '


    KA - US - 49 State Spec

    • $5.62

  • 009

    seal b, frame

    • Part Number: 70082-SDA-A01

    '


    KA - US - 49 State Spec

    • $5.62

  • 010

    frame, sunroof

    • Part Number: 70100-SEA-J12

    '


    KA - US - 49 State Spec

    • $342.55

  • 011

    glass assy., roof

    • Part Number: 70200-SEC-A01

    '


    KA - US - 49 State Spec

    • $644.70

  • 012

    grommet, screw (4mm)

    • Part Number: 70225-SDA-A01

    '


    KA - US - 49 State Spec

    • $4.80

  • 013

    sunshade assy. *nh220l*

    • Part Number: 70600-SEA-J12ZA

    (CLEAR GRAY)

    '


    KA - US - 49 State Spec

    • $206.26

  • 013

    sunshade assy. *yr240l*

    • Part Number: 70600-SEA-J12ZD

    (LIGHT CREAM IVORY)

    '


    KA - US - 49 State Spec

    • $206.26

  • 014

    handle, sunshade *nh220l*

    • Part Number: 70611-S5A-J01ZA

    (CLEAR GRAY)

    '


    KA - US - 49 State Spec

    • $3.83

  • 014

    handle, sunshade *yr240l*

    • Part Number: 70611-S5A-J01ZJ

    (LIGHT CREAM IVORY)

    '


    KA - US - 49 State Spec

    • $3.40

  • 015

    screw, tapping (4x7) (po)

    • Part Number: 70617-S5A-J01

    '


    KA - US - 49 State Spec

    • $4.38

  • 016

    cap, stay cover

    • Part Number: 70623-SM4-003

    '


    KA - US - 49 State Spec

    • $2.55

  • 017

    cover, r. link

    • Part Number: 70630-SEA-J11

    '


    KA - US - 49 State Spec

    • $9.67

  • 018

    cover, l. link

    • Part Number: 70635-SEA-J11

    '


    KA - US - 49 State Spec

    • $9.67

  • 019

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 020

    screw, tapping (4x10)

    • Part Number: 93911-14180

    '


    KA - US - 49 State Spec

    • $0.43
