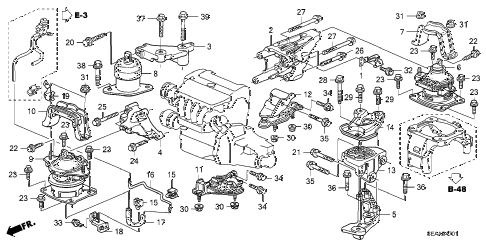

2008 TSX 4 DOOR 5AT ENGINE MOUNTS (AT) diagram
  • 001

    stay a, air flow sensor

    • Part Number: 36536-RAA-A50

    '


    KA - US - 49 State Spec

    • $4.42

  • 002

    bracket, rr. engine mounting

    • Part Number: 50610-SDA-A01

    '


    KA - US - 49 State Spec

    • $98.82

  • 003

    bracket, side engine mounting

    • Part Number: 50620-SDA-A01

    '


    KA - US - 49 State Spec

    • $28.46

  • 004

    bracket, fr. engine mounting

    • Part Number: 50630-SDA-A02

    '


    KA - US - 49 State Spec

    • $49.06

  • 005

    bracket, transmission mount (upper)

    • Part Number: 50670-SEA-E01

    '


    KA - US - 49 State Spec

    • $33.45

  • 006

    rubber, rr. engine mounting (at)

    • Part Number: 50810-SDA-E01

    '


    KA - US - 49 State Spec

    • $217.68

  • 007

    stopper, rr. engine mounting

    • Part Number: 50815-SDA-A01

    '


    KA - US - 49 State Spec

    • $15.93

  • 008

    rubber assy., engine side mounting (at)

    • Part Number: 50820-SEA-E01

    '


    KA - US - 49 State Spec

    • $165.12

  • 009

    rubber assy., fr. engine mounting (at)

    • Part Number: 50830-SDA-E01

    '


    KA - US - 49 State Spec

    • $253.92

  • 010

    stopper, fr. engine mount (at)

    • Part Number: 50835-SDA-A02

    '


    KA - US - 49 State Spec

    • $16.78

  • 011

    rubber, fr. transmission mounting (lower)

    • Part Number: 50850-SEA-A00

    '


    KA - US - 49 State Spec

    • $57.98

  • 012

    rubber, rr. transmission mounting (lower) (at)

    • Part Number: 50860-SDA-A02

    '


    KA - US - 49 State Spec

    • $47.43

  • 013

    rubber, transmission mounting (upper)

    • Part Number: 50870-SEA-E01

    '


    KA - US - 49 State Spec

    • $60.88

  • 014

    plate, transmission mount stopper (upper)

    • Part Number: 50875-SEA-E02

    '


    KA - US - 49 State Spec

    • $13.77

  • 015

    clip, accumulator pipe

    • Part Number: 50933-SZ3-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 016

    pipe

    • Part Number: 50942-SEA-E00

    '


    KA - US - 49 State Spec

    • $8.28

  • 017

    tube

    • Part Number: 50943-SEA-E00

    '


    KA - US - 49 State Spec

    • $1.48

  • 018

    stay d, electronic control mount pipe

    • Part Number: 50946-SEA-E00

    '


    KA - US - 49 State Spec

    • $4.02

  • 019

    stay a, electronic control mount tube

    • Part Number: 50947-SDA-A01

    '


    KA - US - 49 State Spec

    • $3.87

  • 020

    bolt, flange (12x45)

    • Part Number: 90161-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.75

  • 021

    bolt, special (10x34)

    • Part Number: 90162-SDA-A00

    '


    KA - US - 49 State Spec

    • $0.87

  • 022

    bolt, flange (10x35)

    • Part Number: 90163-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.12

  • 023

    bolt, flange (10x20)

    • Part Number: 90163-S5A-000

    '


    KA - US - 49 State Spec

    • $0.82

  • 024

    bolt, flange (12x45)

    • Part Number: 90165-SDA-A00

    '


    KA - US - 49 State Spec

    • $1.35

  • 025

    bolt, flange (12x80)

    • Part Number: 90166-SDA-A00

    '


    KA - US - 49 State Spec

    • $1.77

  • 026

    bolt, flange (12x85)

    • Part Number: 90167-SDA-A00

    '


    KA - US - 49 State Spec

    • $1.82

  • 027

    bolt, flange (12x125)

    • Part Number: 90168-SDA-A00

    '


    KA - US - 49 State Spec

    • $3.00

  • 028

    bolt, flange (10x62)

    • Part Number: 90169-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.20

  • 029

    bolt, flange (10x16)

    • Part Number: 90178-SDA-A00

    '


    KA - US - 49 State Spec

    • $2.62

  • 030

    nut, flange (10mm)

    • Part Number: 90371-S87-A00

    '


    KA - US - 49 State Spec

    • $1.47

  • 031

    nut, flange (12mm)

    • Part Number: 94050-12080

    '


    KA - US - 49 State Spec

    • $1.00

  • 032

    bolt, flange (6x10)

    • Part Number: 95701-06010-08

    '


    KA - US - 49 State Spec

    • $0.87

  • 033

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 034

    bolt, flange (10x20)

    • Part Number: 95701-10020-08

    '


    KA - US - 49 State Spec

    • $1.25

  • 035

    bolt, flange (10x45)

    • Part Number: 95701-10045-08

    '


    KA - US - 49 State Spec

    • $1.50

  • 036

    bolt, flange (12x35)

    • Part Number: 95701-12035-08

    '


    KA - US - 49 State Spec

    • $1.73

  • 037

    bolt, flange (12x50)

    • Part Number: 95701-12050-08

    '


    KA - US - 49 State Spec

    • $1.80

  • 038

    bolt, flange (12x65)

    • Part Number: 95701-12065-08

    '


    KA - US - 49 State Spec

    • $2.40

  • 039

    bolt, flange (12x75)

    • Part Number: 95701-12075-08

    '


    KA - US - 49 State Spec

    • $2.57
