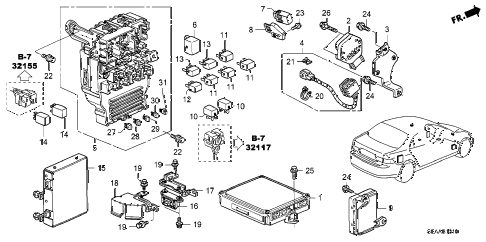

2008 TSX 4 DOOR 6MT CONTROL UNIT (CABIN) diagram
  • 001

    control module, engine (rewritable)

    • Part Number: 37820-RBB-A21

    '


    KA - US - 49 State Spec

    • $1,206.23

  • 002

    driver unit, drive by wire

    • Part Number: 37850-PZX-A01

    '


    KA - US - 49 State Spec

    • $348.07

  • 003

    bracket, drive by wire driver

    • Part Number: 37851-RCA-A00

    '


    KA - US - 49 State Spec

    • $5.42

  • 004

    sub-wire harness, drive by driver

    • Part Number: 37852-RCA-A00

    '


    KA - US - 49 State Spec

    • $23.08

  • 005

    box assy., fuse

    • Part Number: 38200-SEC-A05

    '


    KA - US - 49 State Spec

    • $472.03

  • 006

    relay assy., turn signal and hazard (denso)

    • Part Number: 38300-SDC-A02

    '


    KA - US - 49 State Spec

    • $47.07

  • 006

    relay assy., turn signal and hazard (mitsuba)

    • Part Number: 38300-SHJ-A04

    '


    KA - US - 49 State Spec

    • $41.50

  • 007

    imoes unit

    • Part Number: 39720-SEA-E02

    '


    KA - US - 49 State Spec

    • $82.77

  • 008

    bracket, imoes unit

    • Part Number: 39721-SEC-A00

    '


    KA - US - 49 State Spec

    • $5.77

  • 009

    hands free telephone unit (bluetooth)

    • Part Number: 39770-SEC-A01

    '


    KA - US - 49 State Spec

    • $1,158.12

  • 010

    relay assy., power (micro iso)(mitsuba)

    • Part Number: 39794-SDA-A05

    '


    KA - US - 49 State Spec

    • $28.17

  • 012

    relay assy., fuel pump (denso)

    • Part Number: 39794-SDA-004

    '


    KA - US - 49 State Spec

    • $39.23

  • 013

    relay assy., engine control module (denso)

    • Part Number: 39794-SDA-902

    '


    KA - US - 49 State Spec

    • $39.23

  • 014

    relay assy., power (5p) (micro iso) (mitsuba)

    • Part Number: 39794-S10-003

    '


    KA - US - 49 State Spec

    • $25.17

  • 015

    xm unit

    • Part Number: 39820-SEC-A02

    '


    KA - US - 49 State Spec

    • $466.00

  • 016

    sensor assy., yaw & g

    • Part Number: 39960-SDA-A01

    '


    KA - US - 49 State Spec

    • $770.72

  • 017

    bracket, yaw & g sensor

    • Part Number: 39961-SEA-000

    '


    KA - US - 49 State Spec

    • $7.55

  • 018

    cover, yaw & g sensor

    • Part Number: 39962-SEA-000

    '


    KA - US - 49 State Spec

    • $14.53

  • 019

    bolt, ground (6x16) (washer 12.5mm) (zn)

    • Part Number: 90148-SE0-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 020

    clip b, harness band (129.4mm)(dark brown)

    • Part Number: 91507-P01-003

    '


    KA - US - 49 State Spec

    • $3.90

  • 021

    clip, connector (natural)

    • Part Number: 91533-S04-003

    '


    KA - US - 49 State Spec

    • $2.25

  • 022

    bolt-washer (6x20)

    • Part Number: 93405-06020-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 023

    bolt, flange (6x10)

    • Part Number: 95701-06010-00

    '


    KA - US - 49 State Spec

    • $0.87

  • 024

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 025

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 026

    bolt, flange (6x25)

    • Part Number: 95701-06025-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 027

    fuse, mini (7.5a)

    • Part Number: 98200-40750

    '


    KA - US - 49 State Spec

    • $0.78

  • 028

    fuse, mini (10a)

    • Part Number: 98200-41000

    '


    KA - US - 49 State Spec

    • $0.78

  • 029

    fuse, mini (15a)

    • Part Number: 98200-41500

    '


    KA - US - 49 State Spec

    • $0.78

  • 030

    fuse, mini (20a)

    • Part Number: 98200-42000

    '


    KA - US - 49 State Spec

    • $0.78

  • 031

    fuse, mini (30a)

    • Part Number: 98200-43000

    '


    KA - US - 49 State Spec

    • $0.78
