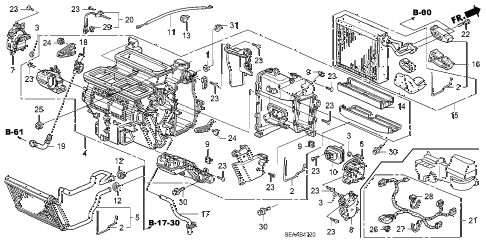

2008 TSX 4 DOOR 6MT HEATER UNIT diagram
  • 001

    gasket, heater

    • Part Number: 39248-692-003

    '


    KA - US - 49 State Spec

    • $1.92

  • 002

    seal a

    • Part Number: 79021-SNA-A01

    '


    KA - US - 49 State Spec

    • $0.87

  • 003

    gasket, link

    • Part Number: 79021-SEA-941

    '


    KA - US - 49 State Spec

    • $2.73

  • 004

    sub-heater unit

    • Part Number: 79106-SEC-A41

    '


    KA - US - 49 State Spec

    • $324.23

  • 005

    core sub-assy., heater

    • Part Number: 79115-SEA-G41

    '


    KA - US - 49 State Spec

    • $286.15

  • 006

    motor assy., mode

    • Part Number: 79140-SDA-A01

    '


    KA - US - 49 State Spec

    • $84.23

  • 007

    motor assy., temperature driver

    • Part Number: 79160-SDC-A41

    '


    KA - US - 49 State Spec

    • $91.15

  • 008

    motor assy., temperature passenger

    • Part Number: 79170-SDC-A41

    '


    KA - US - 49 State Spec

    • $76.78

  • 009

    nut, holder

    • Part Number: 79191-SZ3-A01

    '


    KA - US - 49 State Spec

    • $2.35

  • 010

    transistor, power

    • Part Number: 79330-SDR-A01

    '


    KA - US - 49 State Spec

    • $83.50

  • 011

    cable, water valve control

    • Part Number: 79544-SDA-A11

    '


    KA - US - 49 State Spec

    • N/A

  • 012

    grommet, heater pipe

    • Part Number: 79731-SDA-A00

    '


    KA - US - 49 State Spec

    • $10.20

  • 013

    grommet, water valve cable

    • Part Number: 79770-SE0-000

    '


    KA - US - 49 State Spec

    • $5.32

  • 014

    plate, evaporator (lower)

    • Part Number: 80203-SEA-E01

    '


    KA - US - 49 State Spec

    • $7.63

  • 015

    evaporator

    • Part Number: 80211-SEA-G41

    '


    KA - US - 49 State Spec

    • $473.60

  • 016

    valve, expansion

    • Part Number: 80221-SEA-G43

    '


    KA - US - 49 State Spec

    • $118.53

  • 017

    hose, drain

    • Part Number: 80271-SDA-A00

    '


    KA - US - 49 State Spec

    • $9.58

  • 018

    aspirator

    • Part Number: 80534-S84-A41

    '


    KA - US - 49 State Spec

    • $9.33

  • 019

    hose b, aspirator

    • Part Number: 80542-SDA-A41

    '


    KA - US - 49 State Spec

    • $43.35

  • 020

    thermistor, air conditioner

    • Part Number: 80560-SEA-G01

    '


    KA - US - 49 State Spec

    • $19.00

  • 021

    sub-harness, air conditioner

    • Part Number: 80650-SEA-G10

    '


    KA - US - 49 State Spec

    • $47.68

  • 022

    bolt, socket (5x40)

    • Part Number: 90126-S5A-003

    '


    KA - US - 49 State Spec

    • $3.00

  • 023

    screw, tapping (4x16)

    • Part Number: 90127-SX0-003

    '


    KA - US - 49 State Spec

    • $1.80

  • 024

    screw-washer (4x16)

    • Part Number: 90133-SR3-003

    '


    KA - US - 49 State Spec

    • $1.95

  • 025

    nut-washer (6mm) (paint cutting)

    • Part Number: 90321-SV4-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 026

    clip, connector (beige)

    • Part Number: 91533-SDA-003

    '


    KA - US - 49 State Spec

    • $1.48

  • 027

    clip, harness band (96.9mm) (natural)

    • Part Number: 91540-S0A-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 028

    clip, harness band (140mm) (black)

    • Part Number: 91541-S6M-003

    '


    KA - US - 49 State Spec

    • $2.87

  • 029

    clip, connector (orange)

    • Part Number: 91580-SM4-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 030

    bolt-washer (6x20)

    • Part Number: 93405-06020-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 031

    nut-washer (8mm)

    • Part Number: 94071-08080

    '


    KA - US - 49 State Spec

    • $0.82
