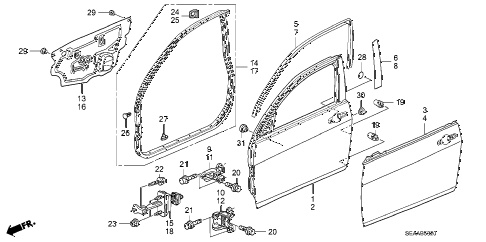

2008 TSX 4 DOOR 6MT FRONT DOOR PANELS diagram
  • 001

    panel, r. fr. door (dot)

    • Part Number: 67010-SEC-A90ZZ

    '


    KA - US - 49 State Spec

    • $710.88

  • 002

    panel, l. fr. door (dot)

    • Part Number: 67050-SEC-A90ZZ

    '


    KA - US - 49 State Spec

    • $710.88

  • 003

    skin, r. fr. door

    • Part Number: 67111-SEA-300ZZ

    '


    KA - US - 49 State Spec

    • $296.53

  • 004

    skin, l. fr. door

    • Part Number: 67151-SEA-300ZZ

    '


    KA - US - 49 State Spec

    • $296.53

  • 005

    tape set, r. fr. door sash (upper) *nh70*

    • Part Number: 67324-SEA-003ZA

    (FLAT BLACK)

    '


    KA - US - 49 State Spec

    • $42.71

  • 006

    tape, r. fr. door sash center (outer) *nh70*

    • Part Number: 67326-SEA-003ZA

    (FLAT BLACK)

    '


    KA - US - 49 State Spec

    • $21.40

  • 007

    tape set, l. fr. door sash (upper) *nh70*

    • Part Number: 67364-SEA-003ZA

    (FLAT BLACK)

    '


    KA - US - 49 State Spec

    • $42.71

  • 008

    tape, l. fr. door sash center (outer) *nh70*

    • Part Number: 67366-SEA-003ZA

    (FLAT BLACK)

    '


    KA - US - 49 State Spec

    • $21.40

  • 010

    hinge, r. fr. door (lower)

    • Part Number: 67420-SDA-A01ZZ

    '


    KA - US - 49 State Spec

    • $27.92

  • 011

    hinge, l. fr. door (upper)

    • Part Number: 67450-S5D-A01ZZ

    '


    KA - US - 49 State Spec

    • $23.25

  • 012

    hinge, l. fr. door (lower)

    • Part Number: 67460-SDA-A01ZZ

    '


    KA - US - 49 State Spec

    • $27.92

  • 013

    seal, r. fr. door hole

    • Part Number: 72321-SEC-A51

    '


    KA - US - 49 State Spec

    • $28.90

  • 014

    sub-seal, r. fr. door

    • Part Number: 72325-SEA-033

    '


    KA - US - 49 State Spec

    • $74.13

  • 015

    checker, r. fr. door

    • Part Number: 72340-SEA-E02

    '


    KA - US - 49 State Spec

    • $41.83

  • 016

    seal, l. fr. door hole

    • Part Number: 72361-SEC-A51

    '


    KA - US - 49 State Spec

    • $28.90

  • 017

    sub-seal, l. fr. door

    • Part Number: 72365-SEA-033

    '


    KA - US - 49 State Spec

    • $74.13

  • 018

    checker, l. fr. door

    • Part Number: 72380-SEA-E02

    '


    KA - US - 49 State Spec

    • $41.83

  • 019

    stopper, door

    • Part Number: 75891-SA7-000

    '


    KA - US - 49 State Spec

    • $2.22

  • 020

    bolt, flange (8x22) (8.5mm)

    • Part Number: 90101-SZ3-000

    '


    KA - US - 49 State Spec

    • $3.25

  • 021

    bolt, flange (8x24.5) (10.5mm)

    • Part Number: 90102-S3N-003

    '


    KA - US - 49 State Spec

    • $0.87

  • 021

    bolt, flange (8x18) (service)

    • Part Number: 90102-SFA-305

    '


    KA - US - 49 State Spec

    • $2.43

  • 022

    bolt, flange (8x22)

    • Part Number: 90141-S04-000

    '


    KA - US - 49 State Spec

    • $1.17

  • 023

    nut, flange (6mm)

    • Part Number: 90341-SDA-000

    '


    KA - US - 49 State Spec

    • $0.45

  • 024

    clip, r. sub-seal b door

    • Part Number: 90563-SDA-003

    '


    KA - US - 49 State Spec

    • $0.72

  • 025

    clip, l. sub-seal b door

    • Part Number: 90564-SDA-003

    '


    KA - US - 49 State Spec

    • $0.72

  • 026

    clip

    • Part Number: 91567-SR2-013

    '


    KA - US - 49 State Spec

    • $2.87

  • 027

    clip, door weatherstrip

    • Part Number: 91568-SR2-003

    '


    KA - US - 49 State Spec

    • $2.98

  • 028

    seal, door panel hole

    • Part Number: 91651-S84-A01

    '


    KA - US - 49 State Spec

    • $1.00

  • 029

    plug, blind (11mm)

    • Part Number: 95551-11000

    '


    KA - US - 49 State Spec

    • $2.00

  • 030

    plug, blind (15mm)

    • Part Number: 95551-15000

    '


    KA - US - 49 State Spec

    • $3.10

  • 031

    plug, blind (20mm)

    • Part Number: 95551-20000

    '


    KA - US - 49 State Spec

    • $3.10
