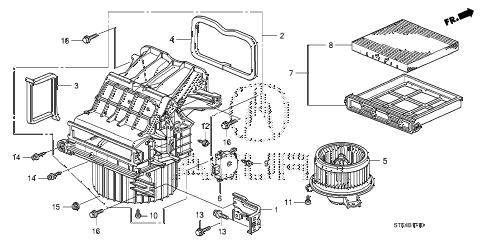

2009 RDX TECH 5 DOOR 5AT HEATER BLOWER diagram
Back to Top
stay, heaterblower sub-assy.seal, blower (outer)gasket, in.motor assy., fanmotor assy., fresh/recirculatingelement, filterscrew, tapping (5x12)screw, tapping (4x16)screw, tapping (5x16)screw-washer (4x16)bolt, ground (6x16) (washer 12.5mm) (zn)bolt, ground (6x16) (washer 12.5mm) (zn)screw, tapping (6x20)screw, tapping (6x20)nut-washer (6mm) (paint cutting)bolt-washer (6x20)bolt-washer (6x20)bolt-washer (6x20)
